HG-7300 on-line dynamic balance equipment can achieve single-sided dynamic balancing correction fast and precisely. HG-7300A on-line dynamic balance equipment can achieve double-sided dynamic balancing correction fast and precisely. System Structure: Portable designed,be made up of high-speed micro computer and special board Function and Specification 1. Single-sided, double-site dynamic balancing function, can be used from hundreds of grams to tens of tons
2. Wizard-style balancing operations: provide a comprehensive wizard-balancing function. Operator can carry out the dynamic balance correction step by step. It is very easy to use. 3. Humanized dynamic balance sequel function: If the dynamic balance process is interrupted by some reasons, can go on doing from the interrupted place, not from the starting 4. Start-up times: Using the original installation conditions, open and down 2 to 3 times.； 5. Vector decomposition: calculate the balance quality on vector decomposition and vector synthesis reasonably in order to meet the objective requirements of field installation.. 6. Balanced approach: test weight method and the influence coefficient method 7.Method of weights:According to the input of rotate data, it can work out the dynamic balancing quality automatically, and give out the balance result. 8．Improved balance report: After completing the balance process, the software can generate the dynamic balance report forms automatically and clear the basic information of rotor, the reducing situation of vibration and detailed test weight information. 9．Rotate Range:60～20000r/min 10. One balance can make the unbalance reduce above 90% 11．Accuracy of vibration is 5 % 12. Grade of Balance, can reach to G2.5 Specification Operation System:embedded WINXP Memory Capacity:512M Display:3.5inch LCD display,320×240pixels Touch Screen: Full screen touch operation Commumicatiom: USB Power:Li batteries or external power, its working time more than six hours Working temperature range: (-10～50)℃ Humidity:95% RH non-condensable Parameter of Technology hardware acquisition board Vibration acquisition channels: HG-7300 For the single-channel,HG-7300A for dual-channel,Also configure a speed channel Specification of acquisition boards
The quantity of channel: HG-7300 is one channel, HG-7300A is two channels, can collocate one rotate channel
Independent signal process, can ensure every channel signal is independent and avoid the interference between each channel.
Multi-channel keeps working simultaneously which ensure the vibration signal in phase absolutely
The gain amplifier, can magnify 1, 2, 4, 8, 16, 32, 64, 128, 256 times automatically. It improves the noise level Multiple signal filtering hardware,Maximum flexibility to obtain the target signal. Including:Low-pass filter: 600Hz to15K Range can be adjusted
High-pass filter: 0.1Hz,10Hz,400Hz,1KHz
Anti-aliasing filter: automatic adjustment of the hardware
Hardware integral processing, can get three signals: acceleration, speed and displacement.
High-precision AD converter:14 digit A/D,300K
The frequency analysis range:0.1Hz—100KHz
Power: AC/DC power supply

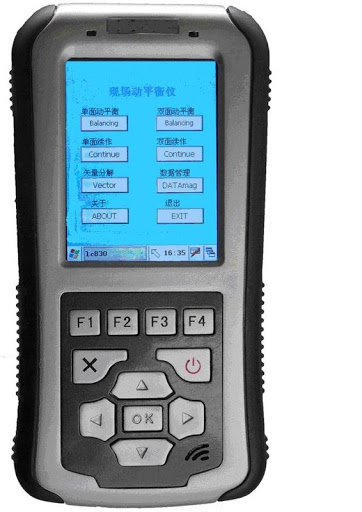

HG-7300 main body
Vibration acceleration sensor (including magnetic seat)
