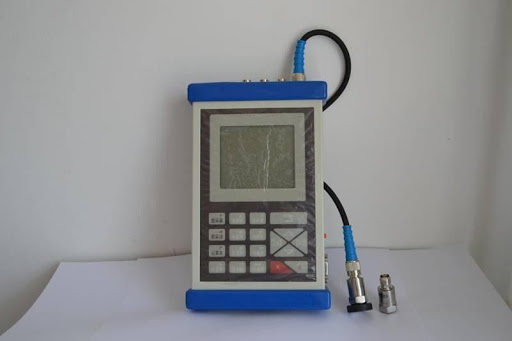

HG601 Huatec 手持式振动测试仪易于使用触发器可选

Specifications:

- Easy to use data collector
- 2  channels simultaneous sampling & display
- On-site 400-lines FFT spectrum and waveform display; Transfer function analysis;
- Data storage: 240  1024-point time waveforms and 62 data sets
- Acceleration envelope demodulation for rolling bearing and gear-box diagnosis
- On-site spectrum comparison function
- Inner or external trigger selectable
- Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition)
- Balancing report automatic generation.
- HG603 is the same instrument but without communication port for computer nor the software capability.

HG601 Packing List:

- HG601 Vibration Data Collector: 1pc
- Accelerometer: 2 pcs
- Magnetic Mount: 2 pcs
- Steel Extension Probe: 1 pc
- Battery Charger: 1 pc
- Accelerometer Cable: 3 pcs
- RS232c Communication Cable: 1 pc
- Balancing Module: 1pc
- Tacho/Trigger Sensor and cable: 1 pc
- Reflector Paper set: 1 pc
- Quick Start Guide: 1 pc
- HG601 Software CD: 1 pc
- HG Software (Optional)
- Certificates of HG601 and sensors: 3 pcs
- Carrying Case: 1 pc
- Stand for tacho sensor: 1 pc
