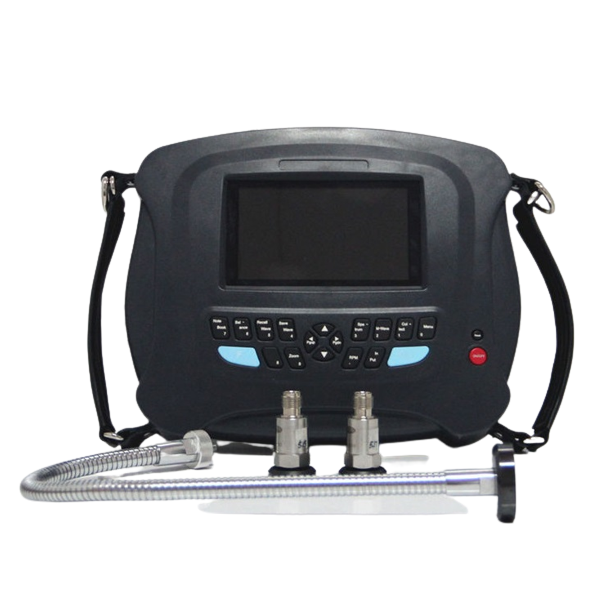

HUATEC HG904 便携式振动分析仪动平衡试验机 (数据采集器; 2频道)

Rotation speed range for dynamic balancing: 70-60.000r/min

Auto-range and manual-range selectable

Measuring accuracy of vibration: 5 %

Sensors: Piezoelectric accelerometer, Magnetoelectricity velocity, Eddy displacement and etc.

Input signal: Accelerometer, and voltage

Amplitude spectrum analysis: 100 lines to 400 lines (zoom), Hanning windowed

Frequency span of spectrum analysis: 100, 200, 500, 1K, 2K, 5K, 10KHz (only for 1-channel sampling)

Data storage: 400 waveforms of 1024-points and 400 data sets

Displacement: 0.003 – 5 mm peak-peak (Amplitude ranges) ; 10 – 500 Hz (Frequency Response)

Velocity: 0.2 – 200mm/s true RMS (Amplitude ranges) ; 10 – 1000 Hz (Frequency Response)

Acceleration: 0.5 – 250m/s2 peak (Amplitude ranges) ; 20 – 5000 Hz (Frequency Response)

Envelope: 0.1 – 20unit true RMS (Amplitude ranges) ; 5-1000Hz from 15-40 KHz (Frequency Response)

Voltage: 0.1 – 10V peak-peak (Amplitude ranges) ; 10 – 10000 Hz (Frequency Response)

Notepad: 10 condition codes for visual inspection

Output: USB for communication with PC

Power: Ni-MH rechargeable battery for 8 hours continuous operation, low battery warning

Operating Environment: 0~55°C, 90% humidity non-condensing

Rotating speed measurement with photocell sensor

Dynamic Range: 60dB with 48dB adjustable gain range

Dimensions: 21×13×4 cm; Weight: 1.2 kg (Include batteries)
