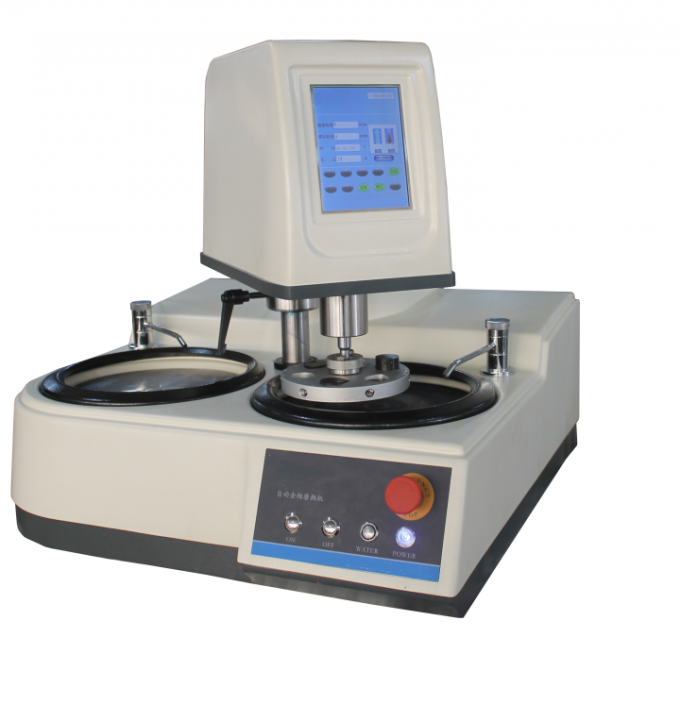

HUATEC HPA-2000X 全自动金相研磨抛光机(中心压力)技术参数

Station: Double disk

Working disk diameter: Standard 254mm with magnetic transfer disk system

Working disk speed: 100-1000 RPM steering positive and negative rotation can be switched

Grinding head speed: 0-100r/min

Sample preparation time range: 0-9999s

Loading range: 30-200N

Loading mode: Center load

Sample gripper: Standard 30mm six (optional 40-50mm four, the rest can be customized)

The power supply: AC220V, 50 hz

The motor power: 0.75 Kw

Overall dimension (length * width * height): 760 x 730 x 700

The weight: 120kg

Optional accessories

GSC250A

Metallographic sandpaper 100 pieces/packet

Abrasive: black silicon carbide

Size: P80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 #

Size: 250 mm Φ water resistant

With a stick back, the sandpaper can be fixed directly on the working table

MAGNOMET

Anti-sticking disc 5 pieces/box diameter: 250 mm Φ

Special anti-stick coating is used on the surface. Sandpaper or polishing cloth with back glue can be pasted on the plate. It is easy to replace and no residual glue is left. Can be used again and again.

The disc is directly used on the magnetic disc of BUEHLER or STRUERS;

Alternative BUEHLER company MagnoMet and MagnoPad

FT250A

Metallographic polishing fabric 10 pieces/bale

Velvet (long hair)/canvas (short hairs)/cloth (short hairs)/silk (no villi) Φ 250 mm

Stick back: The fabric can be fixed directly on the working table

DSU

Diamond suspension grinding and polishing liquid 500ml/ bottle

Diamonds are suspended in a liquid, dripped into it by a spray bottle or automatically, and are evenly distributed

Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for a variety of materials
