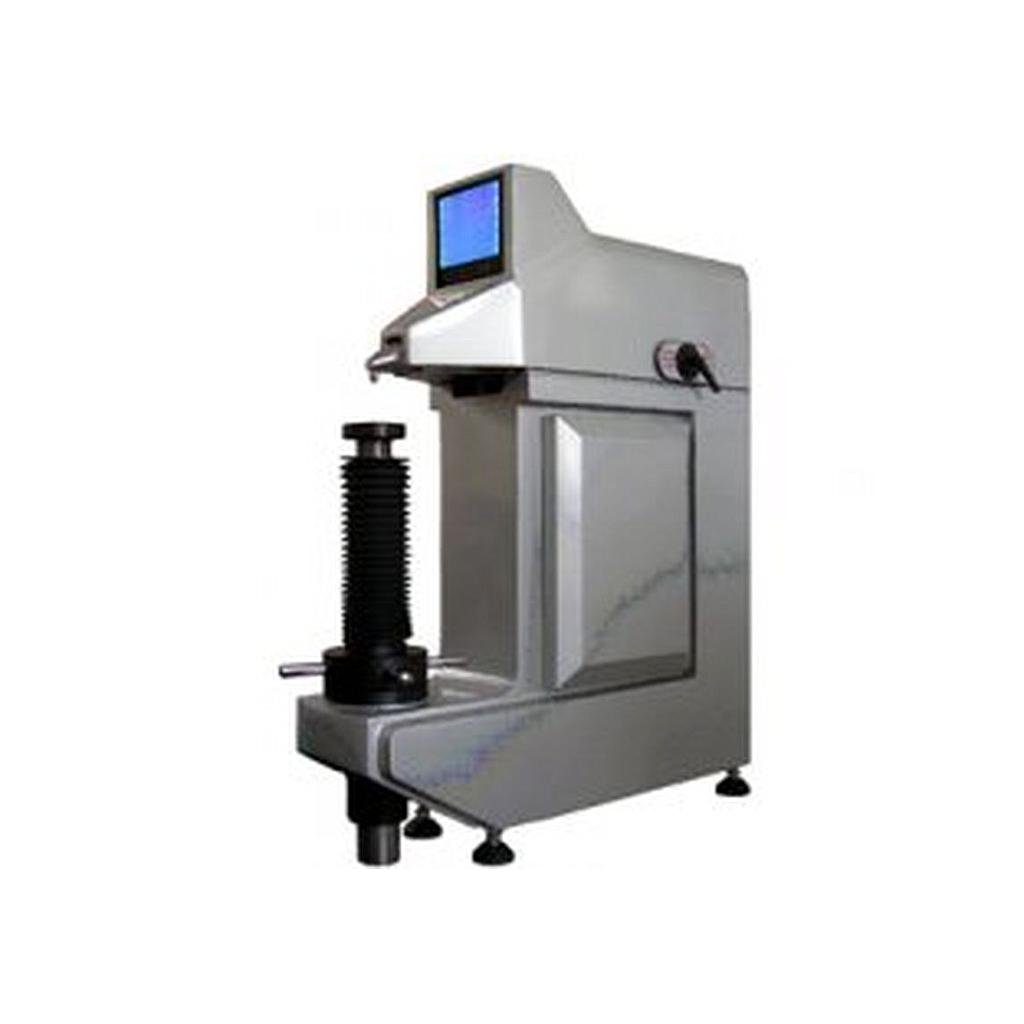

HUATEC HR3200 先进数字硬度计

  • Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
  • Horizontal Protrudent Indenter Design, suitable also for internal and external testing.
  • Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm.
  • Modern design with Titanium metallic Silver finish
  • Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
  • The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
  • Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
  • Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port.
  • Test value can be transformed to the value of HB, HV, HK and σb value.
  • The tester meeting all the following standard such as ISO 6508-2, ASTM E18.


  • Preload:29.4N(3kgf), 98.1N (10kgf)
  • Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf),
  • 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
  • Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X,
  •   HR30X, HR45X, HR15Y, HR30Y, HR45Y
  • HRS, HRV
  • Load dwell duration: 250s, can be set and stored
  • Resolution :0.1HR
  • Display:High definition backlight LCD
  • Operation:Menu selectable, Membrane keypad
  • Upper/lower limits setting & alarming
  • Data statistics: Avg., Max., Min., S, R available
  • Curved surface correcting automatically
  • Memory: Max 400 items of test results stored automatically
  • Data output: RS-232 to micro printer, USB port to external PC
  • Testing space:260mm in vertical, 150mm in horizontal
  • Dimensions: 710mm×210mm×830mm
  • Power supply:AC, 220V/110V, 5060Hz, 4A
  • Net weight:110kg

Standard configuration
    Host machine    1
    Standard hardness block for A scale     1
    Standard hardness block for B scale      1
    Standard hardness block for C scale    1
    Standard hardness block for 30N scale    1
    Standard hardness block for 30T scale    1
    ball indenter (1/16″)    1
    120°cone diamond indenter    1
    Mounting screws for indenter    2
    Flat anvil    1
    “V ”shape anvil    1
    Power supply wire    1
    Screwdriver for indenter mounting    1
    Dust cover    1
Optional accessories:
    Short diamond indenter
    Chisel diamond indenter
    Slender diamond indenter
    1/8″ball indenter and spare steel ball
    1/4″ball indenter and spare steel ball
    1/2″ball indenter and spare steel ball
    φ225 anvil
    φ150 anvil
    Standard hardness block for other scales
    Micro printer
