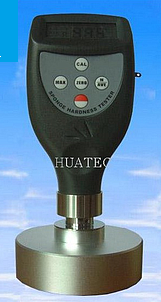

Digital Foam Hardness Tester HT-6520
Durometer HT-6520 is an exclusive design for testing soft cellular materials. The large diameter presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen.
SPECIFICATIONS
Display:4 digits, 10 mm LCD
Range:0~100
Resolution: 0.1
Presser foot: 80mm diameter
Indenter: Extension 2.54mm
25.2mm Cylinder
Spring force: 455gf
Measurement deviation: ≤ ±1
Power supply: 4x1.5v AA (UM-3) battery
Operating condition: Temp. 0~50℃
Humidity <80%
Size:162x65x28mm (6.4x2.6x1.1inch)
Weight:about 490g(not including batteries)
PC interface: RS232C interface
Power off : 2 modes Manual off at any time by depressing the power key till OFF shows on the display or Auto power off after 2 minutes from last key operation .
Accessories:
Carrying case 1 pc.
Operation manual 1 pc.
Digital Foam Hardness Tester HT-6520
Durometer HT-6520 is an exclusive design for testing soft cellular materials. The large diameter
presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen.
SPECIFICATIONS
Display:4 digits, 10 mm LCD
Range:0~100
Resolution: 0.1
Presser foot: 80mm diameter
Indenter: Extension 2.54mm
25.2mm Cylinder
Spring force: 455gf
Measurement deviation: ≤ ±1
Power supply: 4x1.5v AA (UM-3) battery
Operating condition: Temp. 0~50℃
Humidity <80%
Size:162x65x28mm (6.4x2.6x1.1inch)
Weight:about 490g(not including batteries)
PC interface: RS232C interface
Power off : 2 modes Manual off at any time by depressing the power key till OFF shows on the display or Auto power off after 2 minutes from last key operation .
Accessories:
Carrying case 1 pc.
Operation manual 1 pc.
