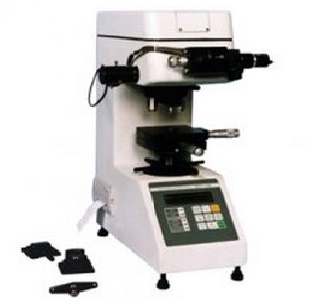

HUATEC HVS1000 数显显微硬度计

Detailed Product Description
•    Micro hardness tester Model HVS-1000 adopts precise mechanical technique and
•    photoelectrical technique.
•    The tester is able to adjust and measure either strong or weak
•    light source, and is capable to pressure holding time of the test
•    load and is displayed by LED
•    This tester adopts peculiar indentation measuring, inverting
•    and read mechanism through measuring once by the
•    micrometer eyepiece
•    It is easy to use, and high precision in measurement

Specifications of micro hardness tester HV1000
Test load    0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)
Load holding time    5-60sec
Magnification of microscope    Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x)
Loading mechanism    Automatic loading and releasing method
Measuring
microscope    Mechanical
    Digital
    Max.measuring length 150μm
    Min.measuring unit 0.0625μm
Max.height of specimen    Approx 65mm
Max.depth of specimen    Approx 85mm
Micro test table    Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm
Digital data display    (5-2500)HV
Automatic recorder
Photographic device    Possible to install at any time
Dimensions of tester    W290 ×D405×M480mm
Weight of tester    25kg
Power supply    AC220V/110V±10% 50Hz/60Hz

Standard delivery of micro metal hardness tester HVS1000
Main unit                                                                                  1
Micro Vickers indenter                                                     1
10 × objective                                                                        1
40 × objective                                                                        1
Manual                                                                                       1
Weight shaft                                                                            1
Cross testing table                                                                 1
Screwdriver                                                                             2
Horizontal adjusting screw                                               4
10× micrometer eyepiece                                                  1
Micro Vickers hardness test block (high)                    1
Micro Vickers hardness test block (medium)            1
Level                                                                                            1
Lamp (6V/2 W)                                                                       2
Fuse 1A, 2A                                                                               2
Certificate                                                                                  1
Manual for printer                                                                  1
Weight                                                                                          6
Fine wire holder                                                                       1

Optional accessories of micro metal hardness tester HV1000

Depends on customer demand


Details



Detailed Product Description

  • Micro hardness tester Model HVS-1000 adopts precise mechanical technique and
  • photoelectrical technique.
  • The tester is able to adjust and measure either strong or weak
  • light source, and is capable to pressure holding time of the test
  • load and is displayed by LED
  • This tester adopts peculiar indentation measuring, inverting
  • and read mechanism through measuring once by the
  • micrometer eyepiece
  • It is easy to use, and high precision in measurement



Specifications of micro hardness tester HVS1000

Test load

0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)

Load holding time

5-60sec

Magnification of microscope

Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x)

Loading mechanism

Automatic loading and releasing method

Measuring

microscope

Mechanical

Digital

Max.measuring length 150μm

Min.measuring unit 0.0625μm

Max.height of specimen

Approx 65mm

Max.depth of specimen

Approx 85mm

Micro test table

Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm

Digital data display

(5-2500)HV

Automatic recorder



Photographic device

Possible to install at any time

Dimensions of tester

W290 ×D405×M480mm

Weight of tester

25kg

Power supply

AC220V/110V±10% 50Hz/60Hz



Standard delivery of micro metal hardness tester HVS1000
Main unit                                                                                  1
Micro Vickers indenter                                                     1
10 × objective                                                                        1
40 × objective                                                                        1
Manual                                                                                       1
Weight shaft                                                                            1
Cross testing table                                                                 1
Screwdriver                                                                             2
Horizontal adjusting screw                                               4
10× micrometer eyepiece                                                  1
Micro Vickers hardness test block (high)                    1
Micro Vickers hardness test block (medium)            1
Level                                                                                            1
Lamp (6V/2 W)                                                                       2
Fuse 1A, 2A                                                                               2
Certificate                                                                                  1
Manual for printer                                                                  1
Weight                                                                                          6
Fine wire holder                                                                       1


Optional accessories of micro metal hardness tester HVS1000


Depends on customer demand
