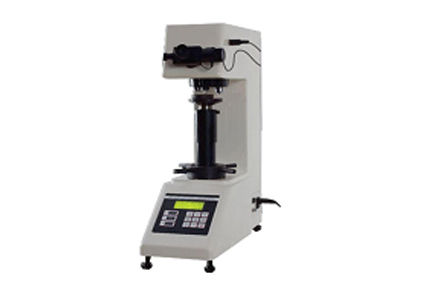

HUATEC HVS-5/10/30/50 数显硬度计 (HV, 100X, 0.0625μm, 294.2N)

Type

HVS-5

DHV-5

HVS-10

DHV-10

HVS-30

DHV-30

HVS-50

DHV-50

Testing Forces

N

2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03

2.942, 4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07

4.903, 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 294.2

9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3

KGF

0.3, 0.5, 1, 2, 2.5, 5

0.3, 0.5, 1, 2, 2.5, 3, 5, 10

0.5, 1, 2, 2.5, 3, 5, 10, 20, 30

1, 2, 2.5, 3, 5, 10, 20, 30, 50

Carriage Control

Automatic(loading/holding-up of loading /unloading)

Holding Time

(0~60)s

Amplification of the microscope

200X, 400X

100X, 400X

100X, 400X

100X, 200X

Min. graduation value of the test drum wheel

0.0625um

0.125um

Testing field

1HV~2967HV

Lens/Indenter switch

With Motorized Turret ( HVS Type with Hand Turrent)

Dimension of the X-Y table

100X100mm

Without

Movement field of the X-Y table

25X25mm

Withoput

Max. Height of the specimen

170mm

Max. width of the specimen

130mm

Light source

Cold light source

Power

110V/220V, 60/50HZ

Objective

The objective 10x, 20x, 40x can be selected according to user’s requirement

Standard accessories

X-Y stage test able

Largest test table, “V”Shape test table

10X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)

Dimension

535X225X580mm

Weight

Gross weight:60Kg Net weight:50Kg
