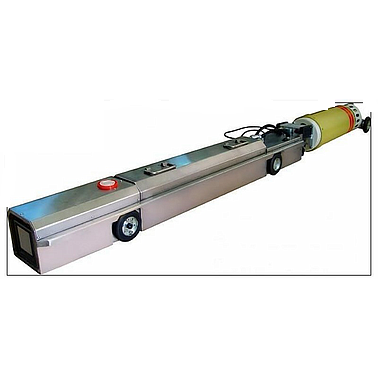

Huatec HXPC-100A X射线管道巡洋舰(Φ800-Φ1500mm,1.5KW)

  • 制造商: HUATEC
    Model: HXPC-100A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specification

- Pipe diameter detecting range: Φ800—Φ1500mm
- Total weight: 140KG
- Crawler length: 2200mm
- Creeping speed:15M/min
- Creeping distance:2KM
- Locating error: ±5mm
- Max.output voltage:300Kv
- Max.outout current: 3mA
- Climbing ability:40°
- Radiation angle:40°
- Output power:1.5KW
- Batteryenergy: 22Ah/120V
- Motor power:300W
- Exposure time: 1s~1hcontinues adjustable
- Exposure voltage:5 selection
- Operation temperature: -30°~ 70°

The crawler include below parts as standard accessories:
- Lead acid pile: 110V(22Ah)
- X-ray machine: 250KV/5mA
- Remote controller (Electro magnetic induction type, no source)
