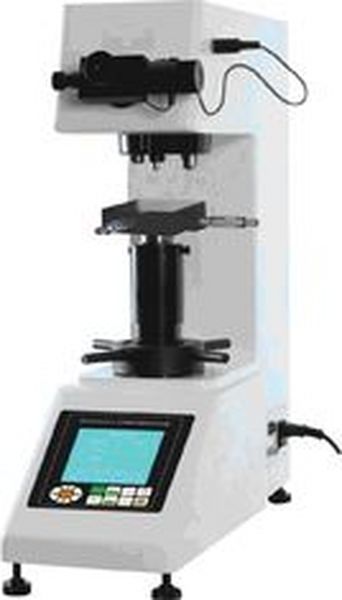

Huatec MHV-5Z 数字液晶显示屏微维氏硬度计

  • 制造商: HUATEC
    Model: MHV-5Z
    来源: China
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications:

 - Test forces:   2.942, 4.903, 9.807, 19.61, 24.52, 29.42,   49.03N

                            (0.3,      0.5,       1,          2,       2.5,      3,            5 kgf)

- Test force application method:    automatic loading, dwelling and unloading

- The shifting method between indenter and objectives: auto shift

- With built-in printer

- Total Amplification of the measuring Microscope:

           + Micro Eyepiece:10×

           + Objectives: 20×,40×

           + Total Amplification: 200×,400×

- Total Amplification/ Min. Test Unit: 100×/0.25 μm, 200×/ 0.125 μm, 400×/ 0.0625 μm

- Dwell time of the test force:      0~60s (5 second as a unit)

- Max height of the specimen:      170 mm

- Distance between the center point of the indenter and the exterior panel: 130mm

- Weight of the main body:       50kg or so

- Power source:                (110~220)  AV, (50~60) Hz

- Overall dimension (L×W×H):  (530×210×630) mm
