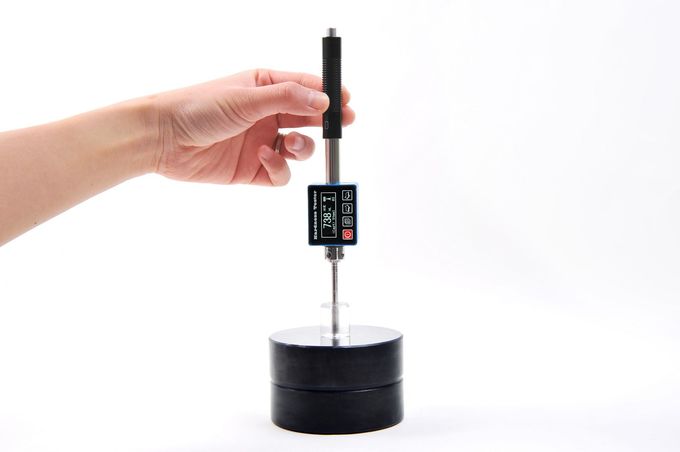

HUATEC RHL-110DL DL显示器便携式硬度计

Measuring range: 20.6～68.2 HRC

Measuring direction: 360°

Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS

Display: dot matrix LCD 128×32 dots

Data storage: 350 groups maxim, relative to impact times 32~1

Charging power supply: 5VDC,220VAC

Charging time: 1.5~2h

Battery: 3.7V,Li(80mAh)

Using temperature: 0 ~ 40℃

Storage temperature: -25 ~ 70℃

Continuous working period: 12h

Communication port: Mini USB

Outline dimensions: 146 × 30 × 25mm

Weight: 110g

Standard Configuration

- Main unit with Impact Device D: 1

- Small support ring: 1

- Cleaning brush (I): 1

- High value test block: 1

- Charger: 1

- Communication cable:1

- Software: 1

Optional Configuration:

- Other type of support rings

- High, medium, and low HLD value test block
