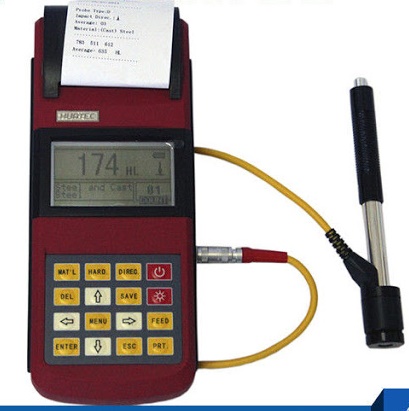

HUATEC RHL160 便携式硬度计 (有打印机)

Measuring range:HLD(170~960)HLD

Measuring direction:360°

Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

Display:dot matrix LCD,128×64 dots

Data memory: 500 groups max.(relative to impact times 32~1)

Printing paper: width is (57.5±0.5)mm, diameter is 30mm

Battery pack: 6V NI-MH

Battery charger: 9V/500mA

Continuous working period:about 150 hours(With backlight off, no printing)

Communication interface:USB1.1

Relative humidity: ≤90%;

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

Standard: Main Unit, D type impact device, Standard test block, Cleaning brush (I), Small support ring, Battery Charger, Paper for printing, Manual, Instrument case

Detail

Main Application

  • Die cavity of molds
  • Bearings and other parts
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Heavy work piece
  • The installed machinery and permanently assembled parts
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi-measuring areas for large-scale work piece



Features

  • 3 inch LCD,or LED display
  • Wide measuring range. Based on the principle of Leeb hardness testing theory. It can measure the Leeb hardness of all metallic materials.
  • Large screen(128×64 dot matrix LCD), showing all functions and parameters.
  • Test at any angle, even upside down.
  • Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
  • Seven impact devices are available for special application. Automatically identify the type of impact devices.
  • Large capacity memory could store 500 groups (Relative to average times32~1 ) information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
  • Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
  • Battery information indicates the rest capacity of the battery and the charge status.
  • User calibration function.
  • Software to connect with PC via USB port.
  • With EL background light.
  • Thermal printer integrated, convenient for in field printing.
  • NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
  • Auto power off to save energy.
  • Outline dimensions:215mm×85mm×42mm



Parameters

  • Measuring range:HLD(170~960)HLD
  • Measuring direction:360°
  • Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
  • Display:dot matrix LCD,128×64 dots
  • Data memory: 500 groups max.(relative to impact times 32~1)
  • Printing paper: width is (57.5±0.5)mm, diameter is 30mm
  • Battery pack: 6V NI-MH
  • Battery charger: 9V/500mA
  • Continuous working period:about 150 hours(With backlight off, no printing)
  • Communication interface:USB1.1
  • Working temperature: -10℃~+50℃;
  • Storage temperature:-30℃~+60℃;
  • Relative humidity: ≤90%;
  • The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.





Testing Range

Material

Method

Impact device

D/DC

D+15

C

G

E

DL

Steel and cast steel



HRC

20~68.5

19.3~67.9

20.0~69.5



22.4~70.7

20.6~68.2

HRB

38.4~99.6





47.7~99.9



37.0~99.9

HRA

59.1~85.8







61.7~88.0



HB

127~651

80~638

80~683

90~646

83~663

81~646

HV

83~976

80~937

80~996



84~1042

80~950

HS

32.2~99.5

33.3~99.3

31.8~102.1



35.8~102.6

30.6~96.8

Cold work

tool steel

HRC

20.4~67.1

19.8~68.2

20.7~68.2



22.6~70.2



HV

80~898

80~935

100~941



82~1009



Stainless steel



HRB

46.5~101.7











HB

85~655











HV

85~802











Grey cast iron



HRC













HB

93~334





92~326





HV













Nodular cast iron

HRC













HB

131~387





127~364





HV













Cast aluminum alloys

HB

19~164



23~210

32~168





HRB

23.8~84.6



22.7~85.0

23.8~85.5





BRASS(copper-zinc alloys)



HB

40~173











HRB

13.5~95.3











BRONZE(copper-aluminum/tin alloys)

HB

60~290











Wrought copper alloys

HB

45~315











Configuration



No.

Item

Quantity

Remarks

Standard Configuration

1

Main Unit

1



2

D type impact device

1

With cable

3

Standard test block

1



4

Cleaning brush (I)

1



5

Small support ring

1



6

Battery Charger

1

9V 500mA

7

Paper for printing

1



8

Manual

1



9

Instrument case

1



Optional Configuration

11

Cleaning brush (II)

1

For use with G type impact device

12

Other type of impact devices and support rings



Refer to Table 3 and Table 4 in the appendix.

13

DataPro software

1



14

Communication cable

1



15







16
