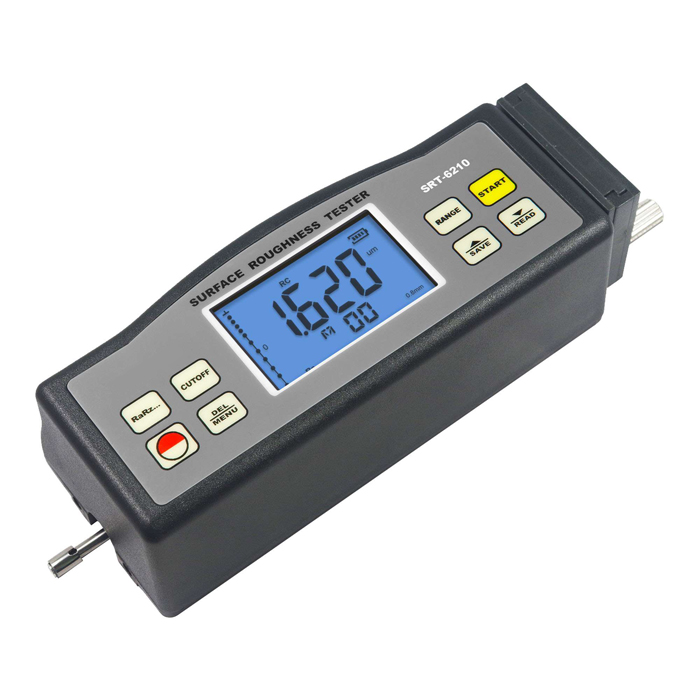

HUATEC SRT6210 粗糙度仪

Display: 4 digits, 10 mm LCD, with blue backlight

Parameters:  Ra, Rz, Rq, Rt

Measuring Range

           Ra, Rq:  0.005-16.00um/0.020-629.9uinch

           Rz, Rt:   0.020-160.0um/0.078-6299uinch

Accuracy: Not more than 10%

Fluctuation of display value: Not more than 6%

Sensor :

         Test Principle: Inductance type

         Radius of Probe Pin: 5µm

         Material of Probe Pin: Diamond

         Dynamo-measurement of Probe: 4mN(0.4gf)

         Probe Angle: 90º

         Vertical Radius of Guiding Head: 48mm

Maximum driving stroke:  17.5mm/0.7inch

Cutoff length (l): 0.25mm / 0.8mm / 2.5mm  optional

Evaluation length:  1-5L

Driving speed:

         sampling length = 0.25mm  Vt=0.135mm/s

         sampling length = 0.8mm    Vt=0.5mm/s

         sampling length = 2.5mm    Vt=1mm/s

         returning Vt=1mm/s

Profile digital filter

         Filtered Profile:            RC

         Filtered Profile:            PC-RC

         Filtered Profile:            Gauss

         Non-Filtered Profile:    D-P

Resolution :

Evaluation length :      5 cut-off

Power Li-ion battery:   rechargeable

Operating conditions:  Temp. 0~50℃

                                    Humidity <80%

Size:  140x57x48 mm  (5.5x2.2x1.9 inch)

Weight: about 420 g
Standard SRT6210: Main Unit, Carrying Case, Standard Sensor, Standard Sample Plate, Power Adapter, Operation Manual, Screwdriver, Adjustable Leg, Sensor Protector

Detail



Optional Accessories of surface roughness tester SRT6210:
Cable and Software for RS-232
Extension Rod
Measurement Support
Special pick-up for grooves, bores and holes

Features:

Surface roughness tester SRT6210 is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.

The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

* Multiple parameter measurement: Ra, Rz, Rq, Rt

* Highly sophisticated inductance sensor

* Four wave filtering methods : RC, PC-RC, GAUSS and D-P

* Built-in lithium ion rechargeable battery and control circuit with high capacity

* Small in size, light in weight and easy to use

* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.

*Manual or automatic shut down. The tester can be switched off  by pressing  the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last  key operation.

*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.

*Metric /Imperial Conversion
