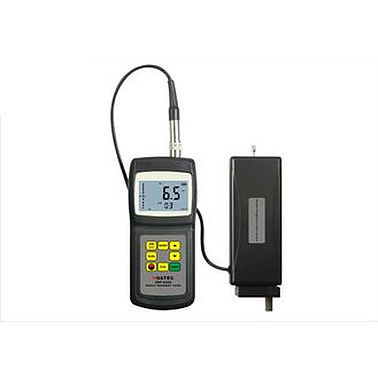

SRT6350 Huatec表面粗糙度仪,带分离探头Ra,Rz

Specifications:

- Display: 4 digits, 10 mm LCD, with blue backlight

- Parameters:  Ra, Rz

- Measuring Range

           + Ra:  0.050-10.00um/1.000-400.0uinch

           + Rz:  0.020-100.0um/0.780-4000uinch

- Accuracy: ≤±10%

- Fluctuation of display value: Not more than 6%

- Sensor :

         + Test Principle: Highly sophisticated inductance type

         + Radius of Probe Pin: 5um

         + Material of Probe Pin: Diamond

         +  Dynamo-measurement of Probe: 4mN(0.4gf)

         + Probe Angle: 90°

         + Vertical Radius of Guiding Head: 48mm

- Maximum driving stroke:  17.5mm/0.7inch

- Cutoff length (l): 0.25mm / 0.8mm / 2.5mm  optional

- Evaluation length:  5l

- Driving speed:

         + sampling length = 0.25mm   Vt=0.135mm/s

         + sampling length = 0.8mm    Vt=0.5mm/s

         + sampling length = 2.5mm    Vt=1mm/s

         + returning                  Vt=1mm/s

- Profile digital filter

         + Filtered Profile:            RC

         + Filtered Profile:            PC-RC

         + Filtered Profile:            Gauss

         + Non-Filtered Profile:        D-P

- Resolution :0.001μm    if reading <10μm

         + 0.01μm     if 10μm≤reading<100μm

         + 0.1μm      if reading ≥100μm

- Evaluation length : 5 cut-off

- Power Li-ion battery: rechargeable

- Operating conditions: Temp. 0~40°C



           + Humidity <80%



Standard Accessories:

   - Carrying case.................1pcs

   - Main unit......................1pcs

   - Standard Sensor.............1pcs

   - Standard Sample Plate...1pcs

   - Power Adapter..............1pcs

   - Operation Manual.........1pcs

   - Screwdriver..................1pcs

   - Adjustable Leg..............1pcs

    - Sensor Protector...........1pcs



Optional Accessories:

1. Cable and Software for RS-232/USB

2. Extension Rod

3. Groove stylus

4. Curvature Probe

5. Measurement Stand

6. Bluetooth interface
