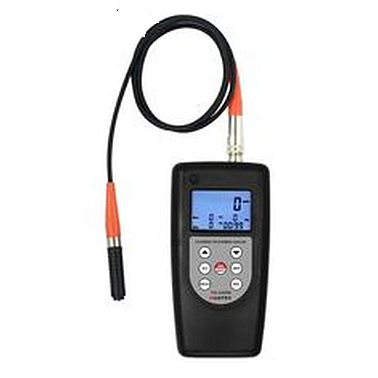

HUATEC TG-2200B 数字磁性涂层测厚仪带数据存储器 ( 0.1 um/1 um, 0~2000 um/0~80 mil)

  • 制造商: HUATEC
    Model: TG-2200B
    来源: China
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267






Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Specifications

Operating Principle

  Magnetic Induction / Eddy Current (F / NF)

  Measuring Range

  0~2000 um / 0~80 mil

  Resolution

  0.1 um / 1 um

  Min. Radius Workpiece

  F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm

  Min. Measuring Area

  6 mm

  Min. Sample Thickness

  0.3 mm

  Accuracy

  ± 1~3%n or ± 2.5 um

  Auto Power Off

  Auto

  Metric / Imperial

  Convertible

  Battery Indicator

  Low Battery Indicator

  Operating Conditions

  Temp. 0~40 °C, Humidity: 10~90 %RH

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery

  Dimensions

  140 x 72 x 34 mm ( 5.5 x 2.8 x 1.3 inch )

  Weight

  215 g (Not Including Batteries)


Standard Accessories:
 1. Main Unit
 2. Probe (F Type & NF Type)
 3. Calibration Base Set (F Type / NF Type) CTG-BS
 4. Calibration Foils (1 set, 4 pieces)
 5. Carrying Case
 6. Operation Manual
 7. Testing report

Optional accessories:
USB, RS-232C data cable with software
Bluetooth data out put with software
90 degrees angle probe
