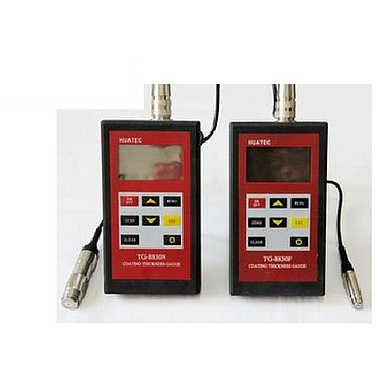

HUATEC TG8830F 涂层测厚仪
制造商: HUATEC Model: TG-8830F 来源: China - 联系
Technical Specification
Measuring range | F1:0~1250μm, | |
Measuring accuracy | 1 point calibration : ±(2%+1)2 point calibration : ±(1%+1) | |
Calibration | 1 point calibration /2 point calibration /basic calibration | |
Display resolution | 0.1um (0~99.9um) / 1um (Over 100um) | |
Weight | 250g(including battery package ) | |
Operation environment | Temperature: 0℃~50℃ humidity: 20%RH～90%RH | |
Operation mode | Direct testing mode and block statistics mode | |
Measuring mode | continuous/single | |
Shutdown mode | manual/automatic | |
Operation alarm | Ring music to alarm mistake | |
Signal Dealing | ||
Threshold | Limits setting and automatically alarm measured values out of limit | |
Data analysis | Analyzing a batch of measuring values via histogram | |
Statistic function | Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum | |
Data Merory | ||
Thickness values | 500 measuring data | |
Delete | Single doubtful data / All data of one group | |
Power supply | ||
Battery | 9V Nickel-hydride/ alkaline batteries | |
Power battery inspection | low voltage indication | |
Standard delivery | Main unit | 1 |
Integrated probe (F1) | 1 | |
Calibration foil set | 4 | |
Calibration base set | 1 | |
9V alkaline battery | 1 | |
Instruction manual | 1 | |
Technical Specification
|
Measuring range |
F1:0~1250μm, |
|
|
Measuring accuracy |
1 point calibration : ±(2%+1)2 point calibration : ±(1%+1) |
|
|
Calibration |
1 point calibration /2 point calibration /basic calibration |
|
|
Display resolution |
0.1um (0~99.9um) / 1um (Over 100um) |
|
|
Weight |
250g(including battery package ) |
|
|
Operation environment |
Temperature: 0℃~50℃ humidity: 20%RH～90%RH |
|
|
Operation mode |
Direct testing mode and block statistics mode |
|
|
Measuring mode |
continuous/single |
|
|
Shutdown mode |
manual/automatic |
|
|
Operation alarm |
Ring music to alarm mistake |
|
|
Signal Dealing |
||
|
Threshold |
Limits setting and automatically alarm measured values out of limit |
|
|
Data analysis |
Analyzing a batch of measuring values via histogram |
|
|
Statistic function |
Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum |
|
|
Data Merory |
||
|
Thickness values |
500 measuring data |
|
|
Delete |
Single doubtful data / All data of one group |
|
|
Power supply |
||
|
Battery |
9V Nickel-hydride/ alkaline batteries |
|
|
Power battery inspection |
low voltage indication |
|
|
Standard delivery |
Main unit |
1 |
|
Integrated probe (F1) |
1 |
|
|
Calibration foil set |
4 |
|
|
Calibration base set |
1 |
|
|
9V alkaline battery |
1 |
|
|
Instruction manual |
1 |
|
