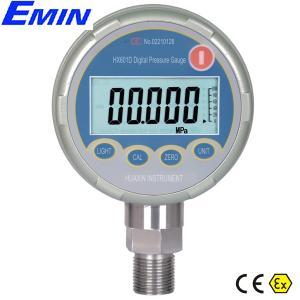

HUAXIN HX601D 低功耗数字压力表

Produc Description


HX601D digital pressure gauge adopts micropower components and unique software processing technology. Adopting dry-cell battery power, it could work 24 hours continuously for 2 years. With 5-digit large crystal screen, the data could be showed more clearly. Every HX601D has passed the high and lower temperature aging thus to ensure more reliable precision. The product has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.



Features
Low Power Consumption: Three dry batteries could work for 17520 hours continuously.
5-digit big LCD with backlight function
9 Pressure Units selectable
Zero point, full scale calibration function
Adopting the special software treatment technology, it is unnecessary to preheat.
RS232 Communication Port can communicate with the computer conveniently.
Temperature compensating
Overload alarm function
With the EEPROM NVM, it has the power off data losing protection function
Stainless steel bottom connection for robustness
Equipped with rugged aluminum alloy cover; lighter weight
CE approved



Technicalspecification:

·         Accuracy:±0.05%F.S,±0.1%F.S,±0.2%F.S,

·         Unitsk Pa,Pa,psi,kgf/cm²,bar,mbar,mmH2O,mmHg,MPa

·         Temperature compensating range(0-50)

·         Range:(-1-0)bar,(0-700)bar,(any range within this two range).

·         Display:5digits with14mm character height

·         Connection:M20*1.5, or1/4'NPT male thread(or customized)

·         Dimensions:Φ94mm×40mm.Weight:0.5kg.Height:135mm
