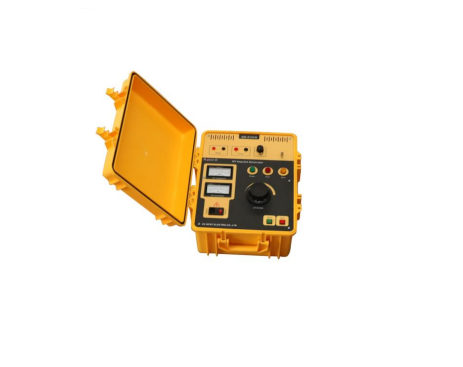

HV HIPOT GD-2131L 脉冲发生器 (16kV, 63mA)

Input power supply: AC 220V,50Hz

Output voltage: DC 0-16kV (adjustable)

Rated power: 1kVA

Max. energy: 1024J, 8uF

DC flashover voltage: 16kV

DC flashover current: 63mA

Max. impulse current: 500mA

Discharging method: DC HV, one time, cycle

Cycle discharging time: 3-6 seconds

Environmental temperature:0-40℃

Humidity:<75% RH

Altitude:<1000m

Insulation level: A

Dimension: 430*540*410mm

Weight: about 31kg
