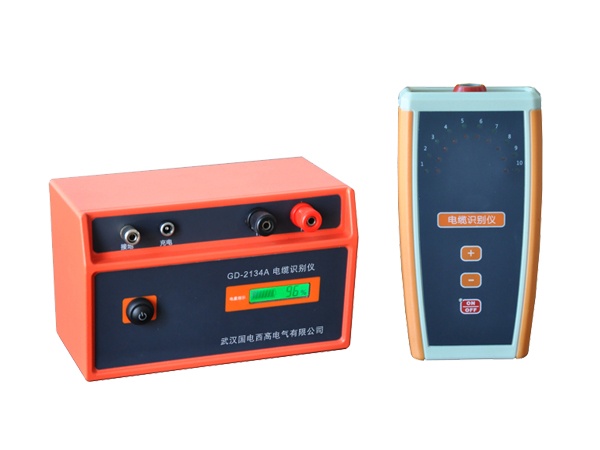

HV HIPOT GD-2134A Cable Identifier (500V; 30A)

Transmitter

Power supply: Built-in 12V/2.6AH lithium battery

Indication: Battery power

Impulse voltage: 500V

Impulse current: Max. 30A (depending on loop resistance value)

Impulse frequency: 15 times/minute

Pulse width: 10ms

Continuous work time: >10 hours

Display: LCD display, legible in the sunlight.

Work temperature: -25~60℃

Humidity: ≤80%RH, no condensing

Storage: -20℃~50℃, ≤95%RH, no condensing

Size: 180*110*100mm

Weight: 1250g (with battery)

Receiver

Power supply: 2pcs 1.5 V AA alkaline batteries

Indication: Signal strength

Clamp: Ø 180mm flexible clamp

Gain adjustment: 10 steps (-3 ~ 24 dB)

Continuous work time: >50 hours

Display: Highlight LED,legible in the sunlight.

Work temperature: -25~60℃

Humidity: ≤80%RH, no condensing

Storage: -20℃~50℃, ≤95%RH, no condensing

Size: 150*80*40mm

Weight: 220g (with battery)
