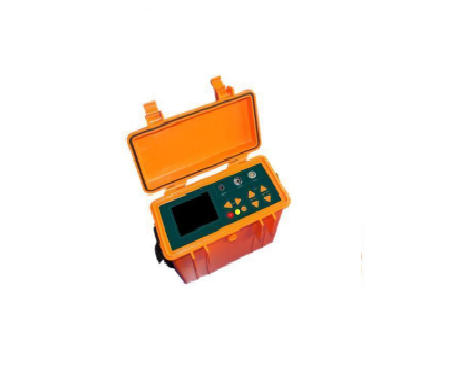

HV HIPOT GD-4132 电缆障碍探测器 (200Hz)

1. Locating function

Acoustic signal transmission band: center frequency 400Hz, bandwidth 200Hz

Signal gain: 80dB

Locating accuracy: 0.1m

2. Power Supply

Built-in Li-battery, nominal voltage 7.4V, capacity 3000mAH.

Power consumption: 300mA, continuous working time 9hours.

Charger: input AC220V±10%, 50Hz. Nominal output 8.4V, DC 1A

Charging time: 4hours

3. Dimension: 270mm*150mm*210mm

4. Weight: 1.5kg.

5. Use condition

Temperature -10℃--40℃, humidity 5-90%RH, altitude <4500m


Detail

Datasheet
