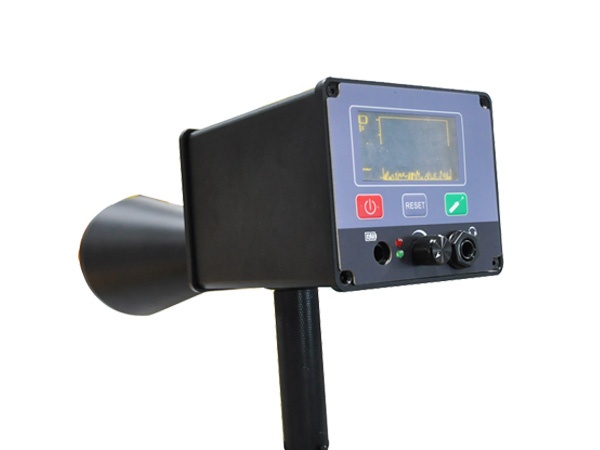

HV HIPOT GD-610B Insulator Faults Detector (6-500kV)

  • 制造商: HV HIPOT
    Model: GD-610B
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Range: 6-500kV

Host:

- Center frequency: 40KHz±2Hz

- Sensitivity: Discharge mode: pinpoint arc discharge

Discharge interval: 4mm

Voltage:

AC 10kV-distance 18M

AC 35kV- distance 25M

AC 110kV- distance 50M

AC 220-500kV- distance 50M

 Operating voltage: 7.4V (lithium-ion batteries*2pcs)

 Dimension: 250*125*140mm

Aluminum alloy bracket:

Laser:

- Output wave length: 650nm

- Divergency degree of light beam: 0.4mard

- Output power: ≤ 50mw

- Dimension: 16*0mm

Telescopic sight/Detachable handle/Tripod standard mounting screw hole

High frequency sensor:

- Center frequency (fo): 40kHz±2Hz

- Center capacitance (Co): 2500±20%pF

- Use temperature: -20-60℃

- Weight: 2.17kg

Headphone:

- Rated impedance (Z): 125Ω

- Frequency range: 100Hz-10kHz

- Sensitivity: (1W/1m) 60dB

Charger:

- Input voltage: AC 220V±10%

- Input frequency: 50Hz±5%

- Output DC voltage: DC 8.4V

- Current: 1A

Packing dimension of whole set: 470*340*420mm

Working temperature: -30-60℃; Humidity: (0~100) %RH

Complete packing weight: 7.18kg
