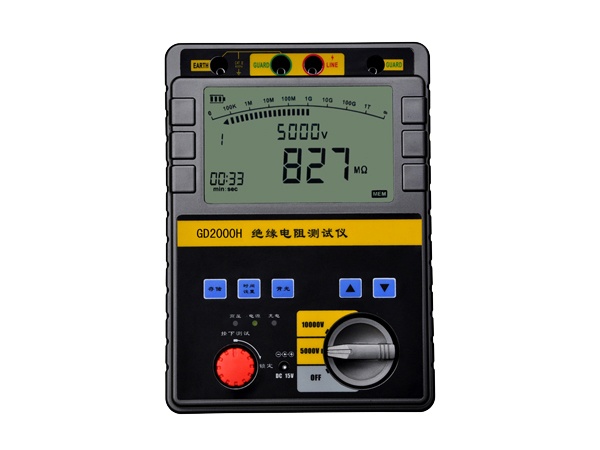

HV HIPOT GD2000H 电阻率计 (10kV DC)

Output voltage: 5kV DC, 10kV DC

Accuracy:

- Temperature: 23℃±5℃

- Insulation resistance: 5M ~ 100G ±5%; 10M ~ 200G ±5%; Other range: ±10 %

- Output voltage: 40M ~ 200G  0 ~ +10%; 80M-400GΩ   0 --+10％

Short-circuit current: ≥3.5 mA

Power supply: 8 * AA type high capacity rechargeable battery & external adapter

Working Temp.&Humidity: -10℃ -- 40℃, max relative humidity 85 %

Storage Temp.&Humidity: -20℃ -- 60℃, max relative humidity 90 %

Insulation: Max.20000MΩ when voltage between circuit and shell is 1000VDC.

Withstand voltage: Withstand 1min when voltage between circuit and shell is  3kV /50Hz AC

Dimension: 230mm*190mm*90mm (L*W*H)

Weight: 3kg

Accessories: Test leads, manual, rechargeable adapter, power cable, test report
