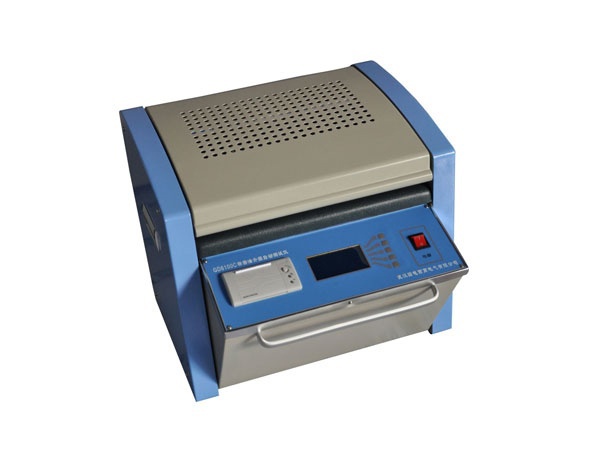

HV HIPOT GD6100C 变压器油消耗测试仪 (5pF-200pF)

Thiết bị đo góc hao tổn máy biến áp dầu

- Power supply: AC 220V±10%

- Power frequency: 50Hz/60Hz ±1%

- Measuring range:

Capacitance: 5pF-200pF

Relative Permittivity: 1.000-30.000

Dielectric loss factor: 0.00001-100

DC Resistivity: 2.5MΩm-20TΩm

- Measuring accuracy:

Capacitance: ± (1% of reading+0.5pF)Relative Permittivity:±1% of reading

Dielectric loss factor:± (1% of reading+0.0001)

DC Resistivity:±10% of reading

- Resolution:

Capacitance:0.01pF

Relative capacitivity: 0.001

Dielectric dissipation factor: 0.00001

- Temperature range: 0-125℃

- Temperature measurement error: ±0.5℃

- AC Test Voltage (RMS): 500~2200V Continuous adjustment, frequency 50Hz

- DC Test Voltage: 0-500V  Continuous adjustment

- Power consumption: 100W

- Dimension: 500×360×420mm

- Weight: about 22Kg
