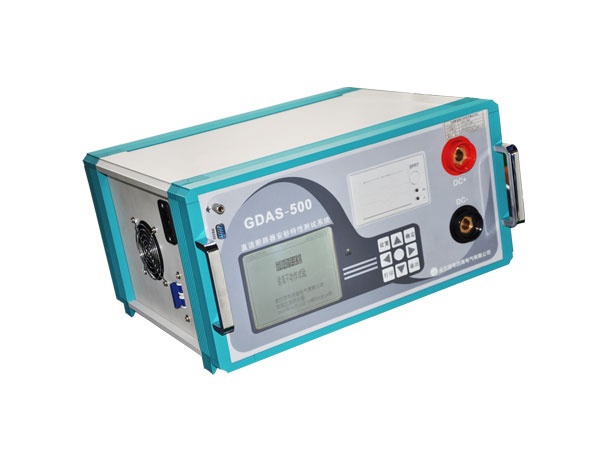

HV HIPOT GDAS-500 DC Circuit Breaker Test Set (0-500A)

Power supply: AC220V±10%, 50Hz±0.5Hz

Testing current range: 0-500A (can be extended to 1000A)

Testing current ripple coefficient: <2%

Stability of output current: ≤0.5%

Ampere-second characteristic test: Time: 0-9.9s; Time resolution(min.): 0.1ms

Through current characteristic test: time: 0-9999s; Time resolution(min.): 0.1s

Environmental temperature: -20--50℃.

Size: 440*220*380mm

Weight: 16kg.
