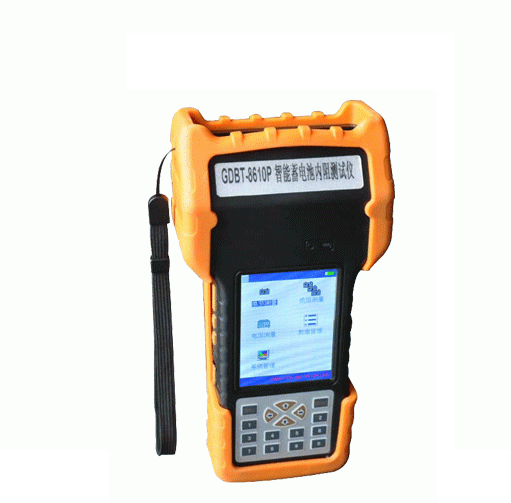

HV HIPOT GDBT-8610P 阻抗计 (0.0mΩ -100mΩ)

Test range:

- Internal Resistance: 0.0mΩ -100mΩ

- Battery Voltage: 0-16V

- Voltage: 0.000V-150V

Min. test resolution:

- Internal Resistance: 0.01mΩ

- Voltage:1mV

Test accuracy:

- Internal Resistance: ±2.0%rdg±6dgt

- Voltage: ±0.2%rdg±6dgt

Power supply: Rechargeable Li-battery, working 5-6hours after full charge; AC100~240V/DC8.4V-1A adapter

Memory: 16M bytes FLASH

LCD display: 240×320pixel, 24bit 3.5inch TFT LCD touch screen

Dimension: 190*100*30MM

Weight: 0.5kg

Communication port: USB

Detail

Datasheet
