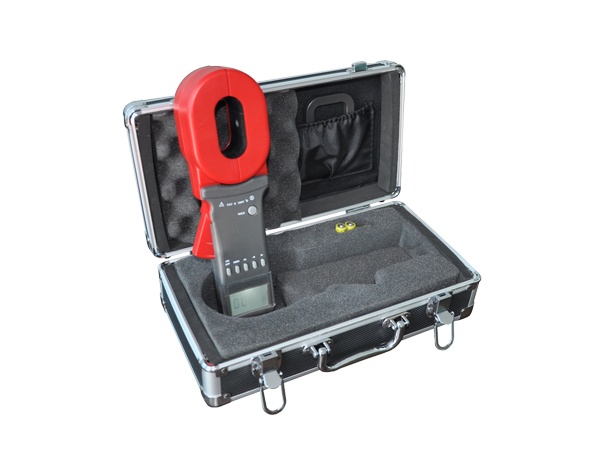

HV HIPOT GDCR2000G+ 夹式接地电阻测试仪

Storage: 99 groups

Sound and light alarm: "beep--beep--beep--" alarm sound, press the AL button to open, close

Power supply: 6V DC (4 section of No.5 alkaline dry battery)

Working environment: -20℃~55℃; 10%RH~90%RH

LCD screen: 4 digital LCD display, 47mm*28.5mm

Jaws size: Long jaw: 65*32mm, round jaw: diameter 32mm

Jaw open size: Long jaw 35mm; round jaw 32mm

Clamp weight: Long jaw 1160g; round jaw 1120g (with battery)

Clamp size:

- Long jaw: length and width 285mm * 85mm * 56mm

- Round jaw: length and width 260mm * 90mm * 66mm

Explosion-proof mark: Exia II BT3 Ga

Protection level: Double insulation

Structural features: Clamp CT

Shift: Fully automatic shifting

External magnetic field, electric field: <40A/m, <1V/m

Single measurement time: 0.5 s

Resistance measurement frequency: >1KHz
