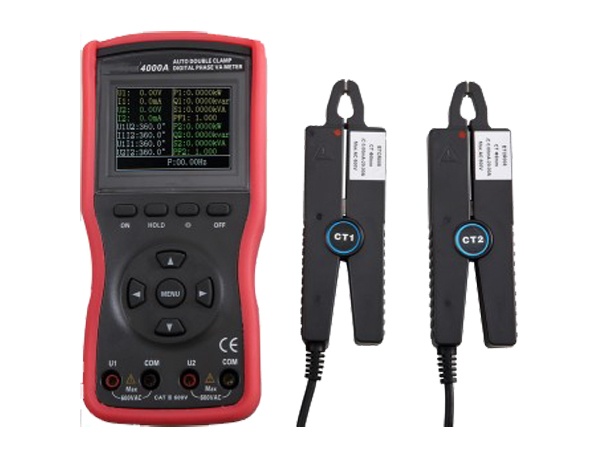

HV HIPOT GDCR4000A Digital Double-clamp Phase Volt-ampere Meter (AC 600V; 20.0A)
制造商: HV HIPOT Model: GDCR4000A 来源: China 保障: 12 Month - 报价要求
- 联系
Power supply: DC9V Alkaline dry battery LR6(1.5V AA size 6pcs)
Measurement range
(fully automatic):
- Voltage: AC 0.00V~600V
- Current: AC 0.0mA~20.0A
- Phase: 0.0°~360.0°
- Frequency: 45.00Hz~65.00Hz
- Active power: 0.0W~12kW
- Reactive power: 0.0var~12kvar
- Apparent power: 0.0VA~12kVA
- Power factor: -1~+1
Clamp opening:
- Sharp mouth: Φ8mm
- Round mouth: 35*40mm
Resolution:
- Voltage: AC 0.01V
- Current: AC 0.1mA
- Phase: 0.1°
- Frequency: 0.01Hz
- Active power: 0.1W
- Reactive power: 0.1var
- Apparent power: 0.1VA
- Power factor: 0.001
Data storage: 1500 groups
Communication: USB port. Data is uploaded to PC via USB port for data analysis and management.
Working current:
- The Max. power consumption is 135mA when the backlight is turned on, and the battery works continuously for about 6 hours.
- Turn off the backlight and power consumption is 90mA. The battery works continuously for about 9 hours
Display: 2.8-inch TFT LCD color screen, display area 58*44mm
Size: 196*92*54mm
Detection rate: About 2s/times
Data hold: Press “HOLD” button during test and “HD” symbol appears.
Auto-shut-down: After start-up for about 15 minutes, the meter automatically shuts down to reduce battery consumption.
Backlight:
- Available. Applicable in the darkness and at night.
- Backlight is turned off automatically after five minutes of no operation.
Voltage detection: When the battery voltage is lower than 7.2V, symbol is displayed to remind the replacement of the battery.
Weight:
- Main unit: 550g (with battery)
- Sharp-mouth current clamp: 170g×2
- Round-mouth current clamp: 185g×2
- Test lead: 250g
Test lead: 1.5m
Test lead of current clamp: 2m×φ5mm
Working condition: -10℃~40℃; <80%RH
Storage condition: -10℃~60℃; <70%RH
Input impedance: Input impedance of test voltage: 1MΩ
Withstand voltage: Withstand voltage AC 1000V/50Hz (sine wave) between instrument line and shell for 1 minute.
Insulation: Insulation between instrument line and shell ≥100MΩ
Structure: Double insulation, with shock-proof insulation sheath.
Standard compliance: IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, pollution degree 2
