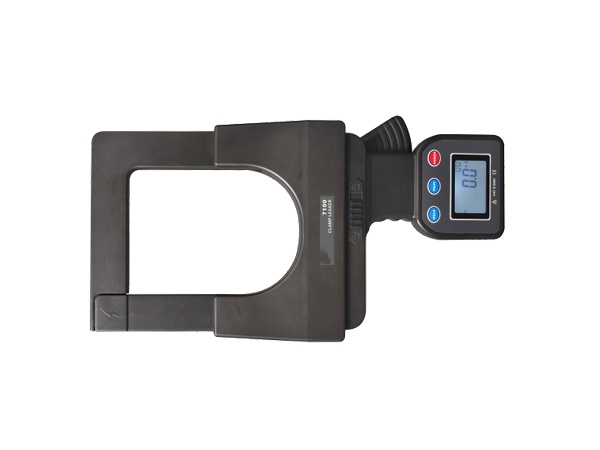

HV HIPOT GDCR7100D AC/DC Clamp Ammeter (AC 1000A)

Function: AC/DC current measurement, peak current hold, online monitoring

Power: 6V DC(LR6 1.5V*4 alkaline dry batteries, continuously working for 12 hours)

Test mode: Clamp CT, non-contact measurement

Clamp size: 108mm*148mm (clamp electric cable of diameter 80mm, or 160mm*4mm flat cable and steel earth wires)

Measurement range: AC: 0.0A~1000A; DC: 0.0A~2000A

Resolution: 0.1A  AC/DC

Measurement Accuracy :

- 0.0A-999A:  ±2%±5dgt

- 1000A-1499A: ±3%±5dgt

- 1500A-2000A: ±4%±5dgt

Standard condition: 23℃±3℃, ≤75%RH, measured wire is at the center of the clamp.

Frequency response: AC: 45Hz~400Hz

Sampling rate: About 2 times/second

Measured wire position: Measured wire at approximately the geometric center of the clamp, max. Off-center error is 2%rdg.

Display mode: 4-bit LCD display, display area 47*28.5mm

Polarity indication: Automatic recognition under DC current detection, displayed with “-”.

Range shift: Automatic switching.

Line voltage: Below AC 600V line measurement

Software: Stored data can be uploaded to PC via software.

USB interface: With USB interface, wire 1.5m.

Data storage: Can store 99 groups of data, “FULL” indicates full storage.

Peak hold: Peak capture and peak hold function, press “HOLD” for long to show the peak value.

Data hold: “HOLD” symbol appears.

Overflow: “OL” symbol appears.

Automatic shutdown: Automatically shutdown about 5 minutes after power on to reduce battery consumption

Battery voltage: Low battery symbol  appears to remind the replacement of battery when battery voltage drops below 4.6V.

Meter size & weight: 350*180*55mm(L*W*H); Meter: 1.5kg(with battery), package: 2.6kg(with accessories)

Working current: 20mA

Environment: Working: -10℃~40℃, ≤80%RH; storage: -10℃~60℃, ≤70%RH

Insulation strength: AC 3700kV/rms (Between the rear cover screw and the housing)

Safety compliance: IEC1010-1, IEC1010-2-032, class 2 of pollution, CAT III (600V)
