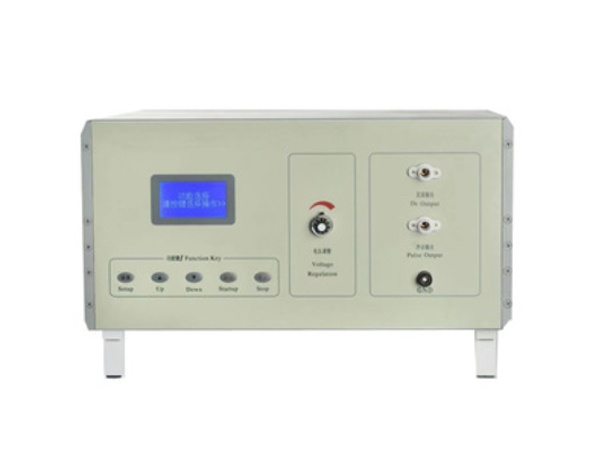

HV HIPOT GDCY-20B 冲动电压发电机 (4kV-20kV)

Output impulse peak voltage: 20kV (4kV-20kV), accuracy: ±3%;

Direct setting of impulse voltage range in automatic mode and programmable mode: 4kV-20kV

Step Voltage: 1V

Impulse voltage waveform: wave front time 1.2μs±30%; wave half-peak time 50μs±20%;

Breakdown judgment: leakage current: 30mA-1200mA can be set;

Voltage attenuation: 0-99% can be set;

Interval time: 1-9999s

Number of impulse: 1-9999/infinite continuous impulse

Polarity: Positive/Negative/Positive and Negative alternately set

Dimension: 450mm*380mm*240mm

Weight: about 12 kg

Optional Extension System Support: WinXP Win7
