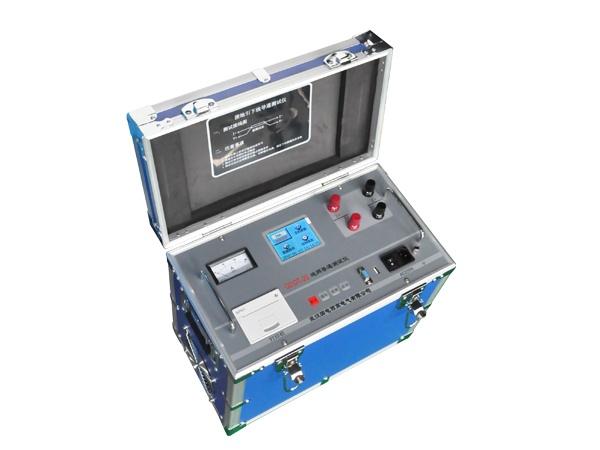

HV HIPOT GDDT-20U 接地电阻测试仪 (100μΩ~20Ω)

Test current: 1A, 2.5A, 5A, 10A, 20A

Test range:

20A; 10A; 5A; 2.5A; 1A

100μΩ~1Ω; 500μΩ~2Ω; 1mΩ~4Ω; 2mΩ~8Ω; 5mΩ~20Ω

Accuracy: ±0.5% (full range)±2 digits

Data storage: 1000 groups

Display: LCD, 4digits resistance

Resolution: 0.1μΩ

Power supply: AC 220V±10V, 50Hz±1Hz;  Fuse 5A

Max. consumption: 500W;  When test current is 20A

Working environment: Temperature: 0°~40°C, RH:≤90% (no condensing)

Dimension: 400*225*350(mm)

Weight: 19kg (With accessories)
