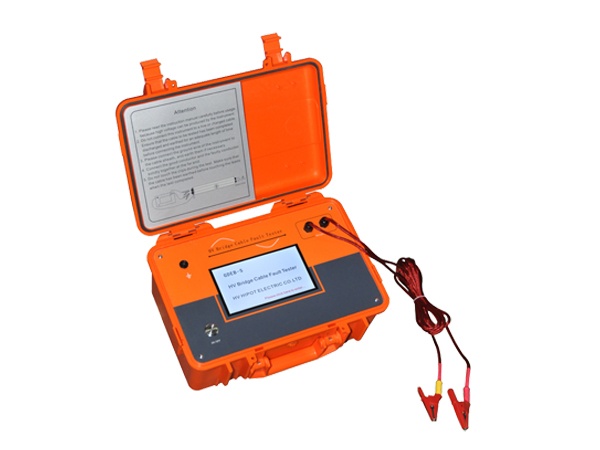

HV HIPOT GDEB-5 Digital Electric Bridge (0~5000V)

Test voltage: 0~5000V

Voltage step: 1kV, 2kV, 5kV, user-defined

Test current: ≥2mA

Loop resistance: Min. 0.1Ω

Test method: One button operation, automatic test

Power supply: 12VDC storage battery

Display: 7 inch color LCD touch screen

Work time: >2.0h (theoretical value for continuous use)

Size: 340*260*170 mm

Weight: 5.3 kg

Packing list

Main unit x 1 set

Short connecting line x 1 roll

Ground cable x 1 roll

Battery charger x 1pc

User's guide x 1 copy

Factory test report x 1 copy

Warranty card x 1 copy

Detail

Datasheet
