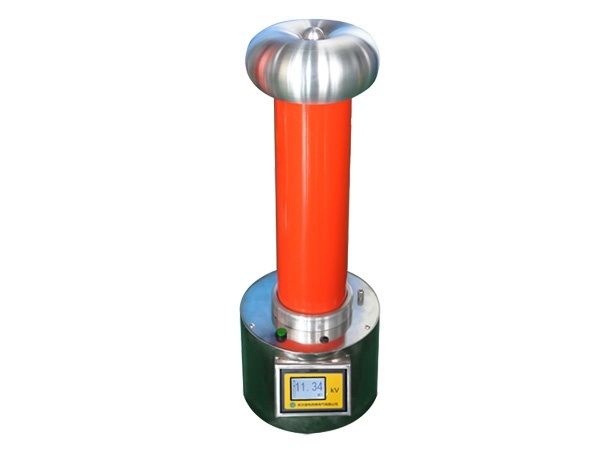

HV HIPOT GDFR-D1-100 AC/DC Voltage Meter (100kV)

Voltage(kV): 100

DC frequency(Hz): <2

AC frequency(Hz): 30-300

Accuracy (G type): AC: 1.0%/DC: 0.5%

Accuracy (H type): AC: 0.5%/DC: 0.5%

Impedance (MΩ): 1280

Capacitance (pF): 250

Voltage ratio: 1000:1 or 10000:1(or customized)

Height (mm): 650

Dimension (mm): 160×160

Cable impedance(Ω): 50 / 75

Range:

1. Low range: 0-20kV

2. High range: 20kV-rated voltage

Cable length(m): 4

Weight(kg): 6.9

Packing Medium: Imported dry type high polymer materials

Operation temperature: 0℃-45℃

Relative humidity: <85%RH,no condensation

Altitude: <1500m(or customized)

Use condition: Indoor use or outdoor use in Sunny day
