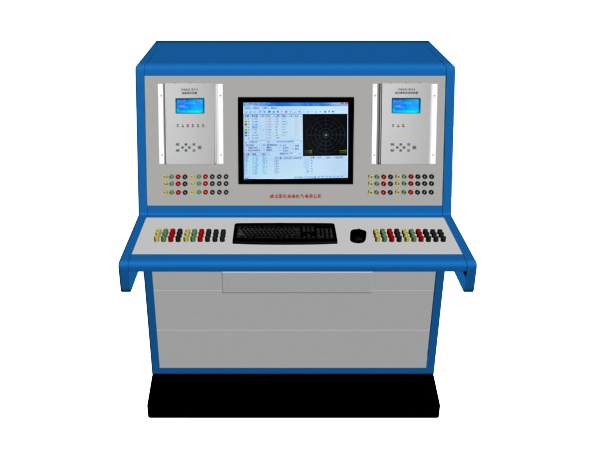

HV HIPOT GDHB 微电脑保护模拟培训系统

  • 制造商: HV HIPOT
    Model: GDHB
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specification

AC current output: 6 channel, every channel: 30A/420VA; 3 channel, every channel: 60A/450VA

AC voltage output: 6 channel, every channel: 120V/80VA

Accuracy of AC output: <0.2% (within major measurement range)

DC current output: 3 channel, every channel: ±10A/200VA

DC voltage output: 3 channel, every channel: ±160V/70VA

Accuracy of DC output: <0.2% (within major measurement range)

Phase: 0~360°

Phase accuracy: 0.2°

Harmonic wave super-position: 2~20 times

Output frequency: 0~1000Hz

Frequency accuracy: <0.001Hz

Binary input: 10 channel (can be extended)

Binary output: 8 pairs (can be extended)

Independent DC: DC110V/220V, rated current: 1.5A


Packing List

GDHB Micro-computer protection simulation training system x 1 set

GDHB system power supply x 1 set

Differential simulation protection device x 1 set

Circuit simulation protection device x 1 set

Power cord x 1pc

Connection line x Several

Ground cable x 1 set

Details

Datasheet
