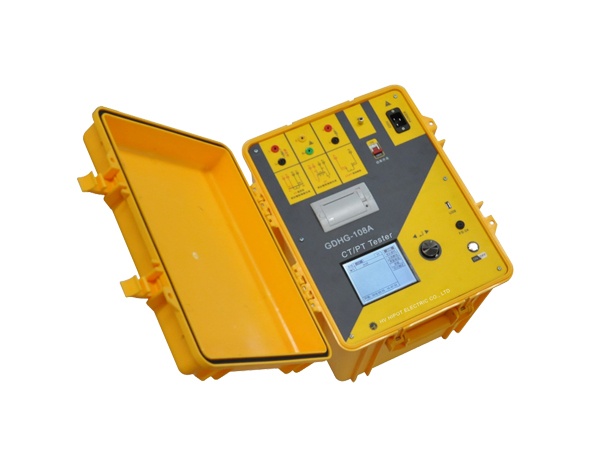

HV HIPOT GDHG-108A CT/PT Analyzer ( 0-1000 Vrms)

Power supply: AC220V±10%, 50Hz

Output: 0-1000 Vrms (20A peak)

Accuracy of excitation measurement: ≤ 0.4% of the reading+0.6% of the range

CT turns ratio measurement:

Range: ≤3000A/1A(15000A/5A); Accuracy: ±1.0%

PT turns ratio measurement Range: ≤500 KV; Accuracy: ±1.0%

Operation environment: Temperature: -10℃ ~ 40℃, humidity: ≤90%, Altitude: ≤1000 m

Dimension & Weight: 440*360*340 mm, ≤ 22 Kg
