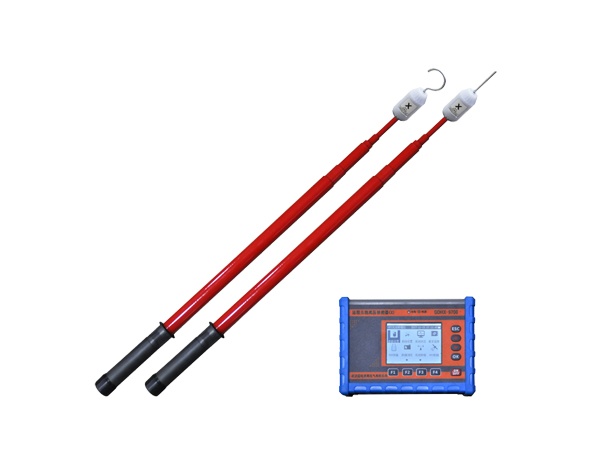

HV HIPOT GDHX-9700 相位检测器 (10V~500kV)

Voltage range: 10V~500kV

Power supply:

- For hand-held unit: large capacity lithium battery

- AA size alkaline battery(1.5V) 3pcs

Wireless transmission: Visual distance 150m

Same phase: Phase displacement ≤20°(user-defined if phase threshold is within 0-90°)

Different phase: Phase displacement＞20°(user-defined if phase threshold is within 0-90°)

Display accuracy: Quantitative measurement ≤5°

Resolution of phase angle: 1°

Phase sequence measurement: Phase sequence is determined through clockwise 120°/ counter-clockwise 240°

Satellite timing range: 2~30 minutes

Display: Positive type LCD screen, clear in the sunlight.

Working temperature: -35~+50℃

Storage temperature: -40~+55℃

Relative humidity: ≤95％RH, condensing

Hand-held unit: 0.31 kg

Detector X: 0.16 kg

Detector Y: 0.16 kg
