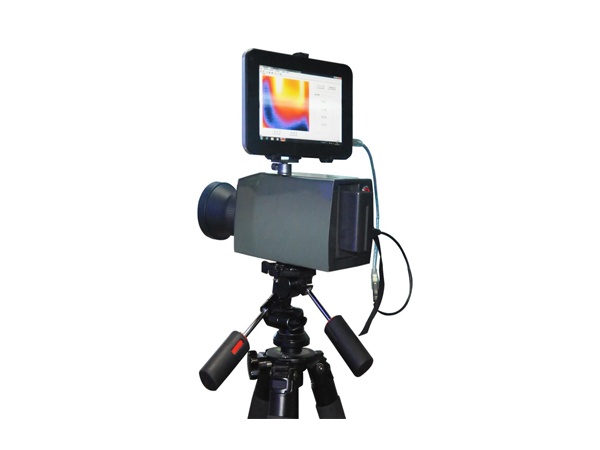

HV HIPOT GDIR-1000L SF6泄露红外探测器 (10.3µm-10.7µm)

  • 制造商: HV HIPOT
    Model: GDIR-1000L
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Detector Type: Uncooled vanadium oxide focal plane

Spectrum band: 10.3µm-10.7µm

Frame rate: 25Hz

Resolution: 320*240

Total pixels: 76800

Thermal Sensitivity: <15 mK @ +30°C (+86°F)

NETD: 40mk(F/1)

Lens: 50mm F/1

Measurement sensitivity: 0.001mL/s

Power consumption: ≤5W@25℃

Power supply: DC 7.2V

Battery working time: ≥5 hours

Start-up time: 10s

Storage & videotape: Solid state hard disk

Video output: Digital video output

Communication mode: USB interface

Working temperature: -40℃ ~ +50℃

Storage temperature: -55℃ ~ +70℃

Weight: 3 kg (including battery)

Software: Analysis and report

Zoom: 1 – 8× continuous digital

Focus: Auto & Manual

Color LCD: 7"

Adjustable Viewfinder: Tiltable OLED, 1080P

Video Camera w/Lamp: 3.2 MP

Laser Spot: Yes

Delta T: Yes
