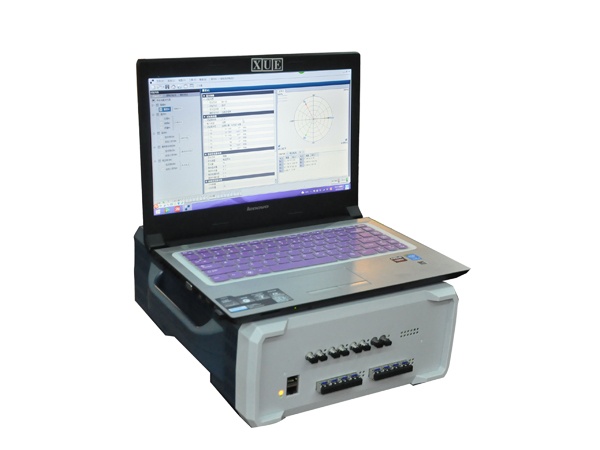

HV HIPOT GDJB-61850 Optical Digital Relay Protection Test System

  • 制造商: HV HIPOT
    Model: GDJB-61850
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Power supply:

- AC 220V, allowable variation: - 20%~15%; frequency: 50Hz, allowable variation: -4%~2%; waveform: sine wave, distortion factor≤5%;

- DC 110V/220V, allowable variation: -20%~15%; ripple coefficient<5%;

Interface:

- Ethernet communication

• Model: 10/100Base- Tx;

• Port: 2 pcs;

• Interface type: RJ45;

- Fiber optic Ethernet

• Model: 100Base-FX/1000Base-FX;

• Port: 8 pair;

• Interface type: LC;

- FT3 optical fiber serial port

• Adopted standard: IEC60044-7/8;

• Port: 6pcs for sending,1pcs for receiving;

• Interface type: ST;

- Synchronous interface

• Interface type: ST;

• Timing deviation: < ±1μs;

- Cascading synchronization interface

• Port: 1- way for B code,1- way for RS485 (adaptive master slave mode, can input, output);

• Interface type: phoenix terminal;

Binary output contact

- Quantity: 4 pair;

- Type: idle contact;

- Output capacity: 250V(AC/DC)/0.5A;

- Relay actuation time: < 3ms;

Binary input contact

- Quantity: 8 pair;

- Type: 20~250V(DC) or idle contact;

- Sampling frequency: 10kHz;

- Time resolution: 100μs;

- Anti- jitter time: 0~25ms;

- Timing error: ±0.1ms(0.001s~1s), ±0.01%(1s~1.5x105s);

- Max. timing: 1.5x105s;

Analog small signal input:

- Channel:12;

- Voltage range: ±10V;

- Voltage accuracy: 0.1%;

- Max. current: 1mA;

- Allowable input frequency: sine signal 10~250Hz, transient signal DC~10.0kHz;

- Frequency accuracy: 1mHz;

- Frequency resolution: 0.001Hz;

- Phase accuracy: < 0.1º;

- Status indication: green light means there have signal output;

- Interface type: phoenix terminal;

Analog small signal output

- Channel:12;

- Voltage range: ±10V;

- Voltage accuracy: 0.1%;

- Max.current: 1mA;

- Allowable input frequency: sine signal 10~250Hz, transient signal DC~10.0kHz;

- Frequency accuracy: 0.002%(1mHz under power frequency);

- Frequency resolution: 0.001Hz;

- Phase: phase angle range 0~359.9º, accuracy < 0.1º, resolution ±0.01º(50/60Hz);

- Interface type: phoenix terminal;

Size(W×H×D): 256mm×182mm×365mm;

Weight5kg;
