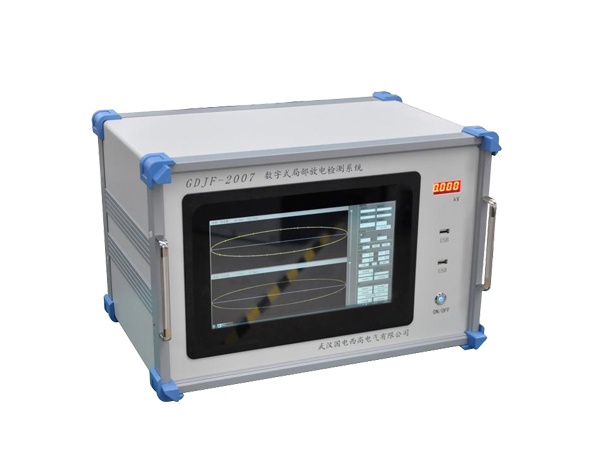

HV HIPOT GDJF-2007 Digital Partial Discharge Analyzer (6pF-250μF)

Specification

Capacitance range: 6pF-250μF

Sensitivity: 0.1 pc

Measurement channel: 2pcs independent channels

Sampling accuracy: 12Bit

Sampling rate: Max. 100MHz per channel

Measurement range: 0.1pc-10000nc.

Dynamic range: >80db.

Measurement frequency band: 10kHz-1MHz at 3db.

Frequency range of test power: 50-400Hz.

Programmable filter: Low frequency: 10K, 20K, 40K, 80K; High frequency: 100K, 200K, 300K, 1000K.

Environmental temperature: -15℃--50℃

Relative humidity: ≤95%(20℃)

Altitude: ≤3000 m.

Impact ability: 5000 V at each input port and power terminal (positive, negative and AC)

Power input: AC 220 V ±10%, 45-65 Hz, power <500 W.

Weight: About 15 kg.

Dimension: 58*36*32 mm

Accessories

Main unit: 1pcs

Calibration pulse generator: 1pcs

Impedance unit: 2pcs

Coaxial cable: 2pcs

Earth cable: 1pcs

Wireless mouse: 1pcs

Power cord: 1pcs

Connection cable: 2pcs

Clamp: 2pcs

Charger: 1pcs

User’s guide: 1 copy

Factory test report: 1 copy

Detail

Datasheet
