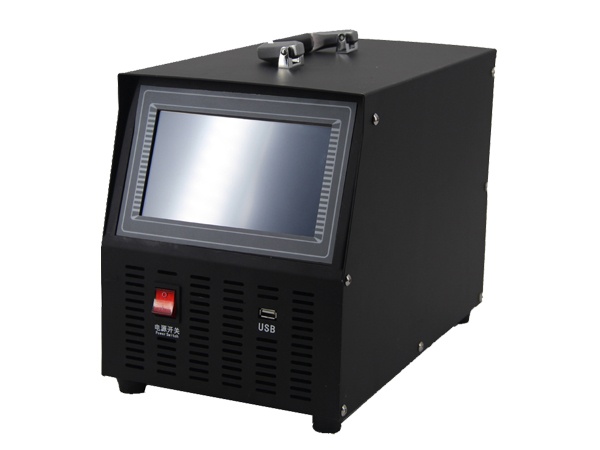

HV HIPOT GDKH-10 Lead Acid Battery Regenerator (1.5~16V)

Output voltage: 1.5~16V

Output current: 2V battery:   0~100A; 4/6V battery: 0 ~60A; 12V battery:   0~30A

Single cell voltage resolution: 2V: 0.001V; 6V/12V: 0.001V

Working mode: Single machine use, constant current mode

Protection performance: Over voltage protection: LCD prompt;

Over current protection: LCD prompts;

65°C overheat protection: LCD prompt, buzzer alarm;

Voltage test accuracy: 0.5%

Current test accuracy: 1%

Current control accuracy: 0.1A

Data storage capacity: 2Gbit FLASH

Heat transfer: Forced air cooling

Temperature:  Working range: -5~50°C

Storage temperature: -40~70°C

Humidity: Relative humidity 0~90% (40±2°C)

Altitude: 4000 meters

Noise: <60dB

Voltage: Single-phase three-wire system 220V AC (–20% to +30%), frequency: 45 to 65Hz;

 Withstand voltage test: Input - Case: 2200Vdc 1min

Input-output: 2200Vdc 1min

Output - Case:700Vdc 1min

Safety: Meet EN610950

AC input: public socket for 1~1.5mm2 cable

DC output: 25mm2 cable quick connector (red positive black negative)
