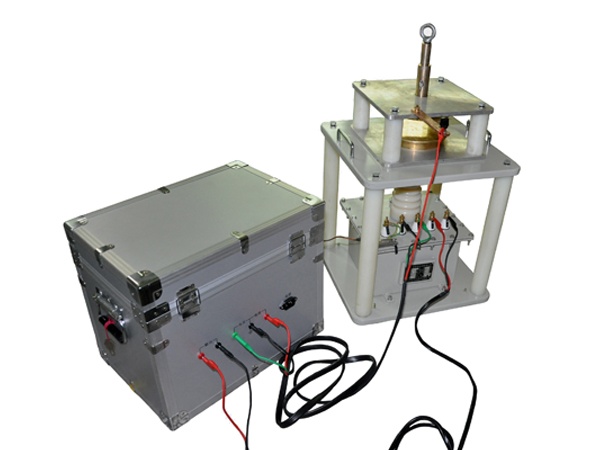

HV HIPOT GDML-20 Automatic Leakage Current Test Set for FRP Insulator Core Rod (2kVA)

Equipment capacity:  2kVA

Input voltage:  220V

Rated input current:  9.1A

High voltage output:  0-20kV

Rated output current:  2.000mA

Resolution:  0.1uA

Maximum opening distance of electrode:  50mm

Maximum diameter of the electrode:  ¢150mm

Equipment inherent leakage:  0.12mA / 20kV (basic linear)

Timing range:  0-999S

Ambient temperature:  -20 ° C to 50 ° C

Voltage accuracy:  ≤1.5% (F.S) ± 5 words

Current Accuracy:  ≤1.5% (F.S) ± 5 words

Dimension: 360*360*750mm

Weight: 35kg
