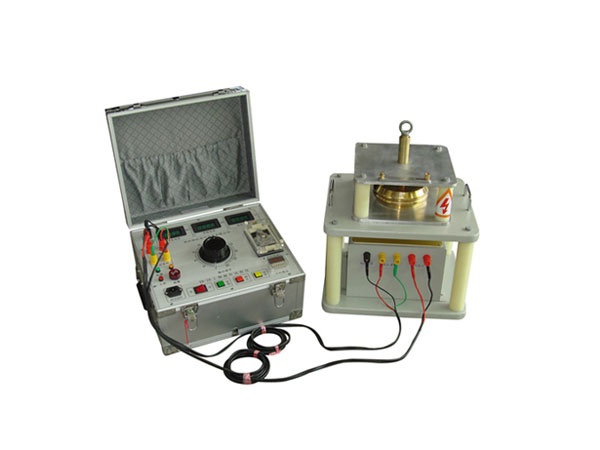

HV HIPOT GDML-20S Leakage Current Test Set for FRP Insulator Core Rod (2kVA)

Capacity: 2kVA.

Input voltage: 220V.

Rated input current: 9.1A.

Max. Output voltage: 20kV.

Rated output current: 2.000mA.

Resolution: 1uA.

Max. Open distance of electrode: 50mm.

Max. Diameter of electrode: 150mm.

Inherent leakage current: 0.7mA/20kV(Basic linear).

Weight: Control unit --- 18kg; HV electrode ---

Dimension: Control unit --- 440mm (L)*340mm (W)*240mm (H);

HV electrode--- 380mm (L)*380mm (W)*960mm (H);
