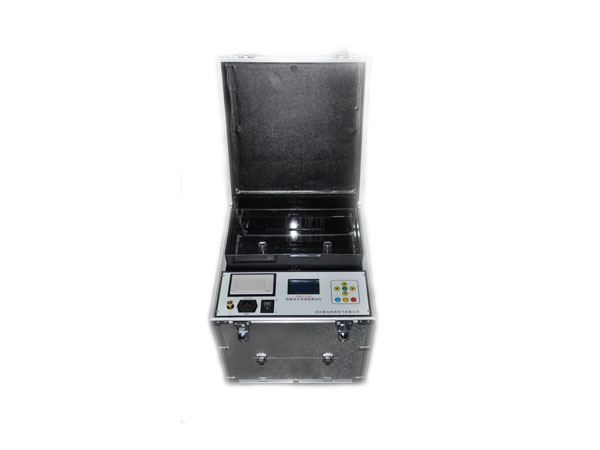

HV HIPOT GDOT-100 绝缘油自动测试仪 (100kV)

Power supply: AC220V±10%, 50Hz

Output voltage: 100 kV

Capacity: 2.0 kVA

Speed of voltage increase: about 2.0 kV/ s

Voltage inspection accuracy: 1 %

Breakdown sensitivity: < 0.1 kV

Waveform distortion: ≤ 1 %

Breakdown response time: ≤ 10 ms

Working environment:

- Temperature: 0-40 degree

- Humidity: Max. relative humidity 85%

Storage environment:

- Temperature: - 20- 60 degree

- Humidity: Max. relative humidity 75%

Altitude: <1500m (if over 1500m, it can be customized)
