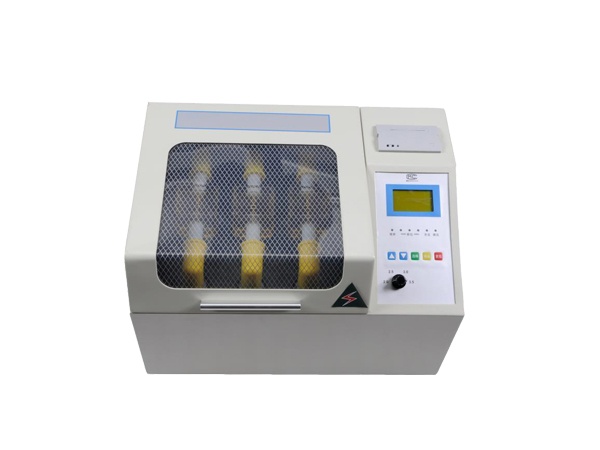

HV HIPOT GDOT-100D 绝缘油测试仪 (100kV)

Output voltage: 0-100kV

Power distortion rate: <3%

Voltage increasing speed: 2.0,2.5,3.0,3.5kV/s (adjustable)

Voltage measurement error: ±3%

Capacity: 1.5kVA

Power input: AC220V± 10%, 50Hz±1Hz

Power: <200W

Working temperature: 0℃-+40℃

Oil cup volume: 200mL (400mL optional)

Electrode spacing: 2.5mm

Humidity: <80%RH

Dimension: 470*430*480mm

Weight: 49 kg
