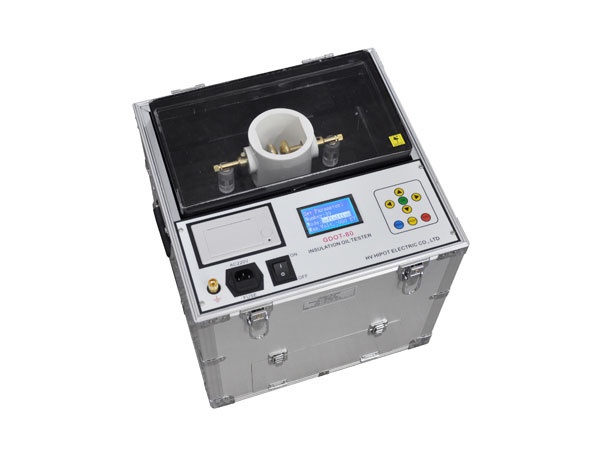

HV HIPOT GDOT-80 绝缘油测试仪 (80 kV)

Power supply: AC220V±10%, 50Hz

Output voltage: 80 kV

Capacity: 1.5 kVA

Speed of voltage increase: about 2.0 kV/ s

Voltage inspection accuracy: 1 %

Breakdown sensitivity: < 0.1 kV

Waveform distortion: ≤ 1 %

Breakdown response time: ≤ 10 ms

Working environment:

- Temperature: 0 ℃ -40 ℃

- Humidity: Max. relative humidity 85%

Storage environment:

- Temperature: - 20 ℃ -60 ℃

- Humidity: Max. relative humidity 75%

Altitude: <1500m (if over 1500m, it can be customized)
