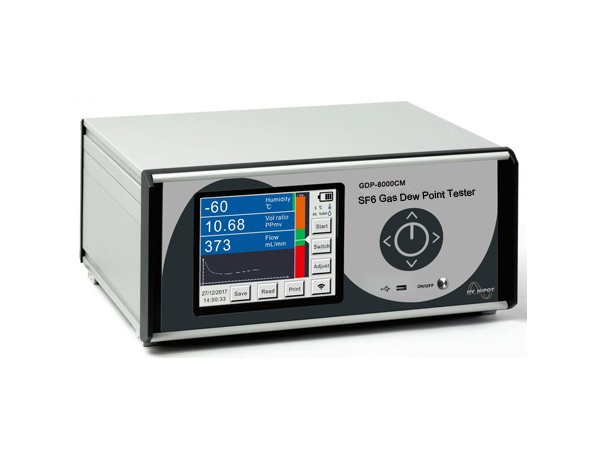

HV HIPOT GDP-8000CM SF6 Gas Dew Point Tester - Chilled Mirror Method (-90ºC ~ +20ºC)

Measurement method: Auto chilled mirror measurement (Stirling refrigeration principle)

Mirror surface temperature sensor: PRT-100

Single sample measurement time: 90 seconds (stable)

Operation temperature: -20ºC ~ +60ºC

Measurement range: -90ºC ~ +20ºC

Accuracy: Better than 0.2ºC

Resolution: 0.1ºC

Repeat-ability: ±0.05ºC dew/frost point

Display unit: ºC, ppm (with a dew point conversion value of 20ºC in the environment)

Gas flow: 400-600mL/min

Flow display: Imported digital flow meter

Sample gas pressure: ≤1MPa

Environmental humidity: 90%RH

Power supply: 220VAC ±10%, DC of Li battery (more than 6 hours battery life)

Dimension: 470*200*400mm
