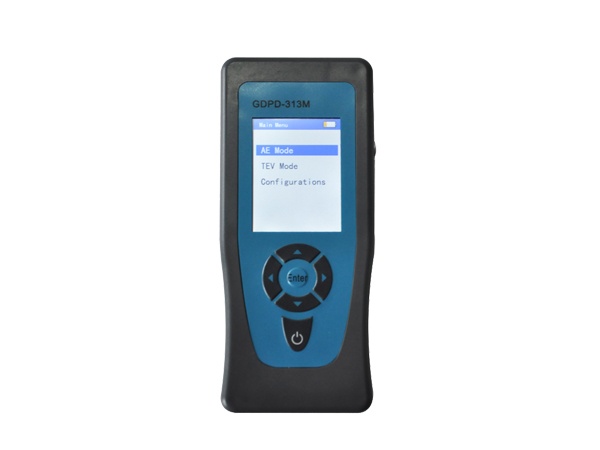

HV HIPOT GDPD-313M 便携式局部放电检测仪 (-7dB~60dB)

TEV Sensor

Measurement range: 0-60dB

Bandwidth: 3-100MHz

Accuracy: ±1dB

Max. pulse times per cycle: 1000

Min. pulse times: 1


Ultrasonic sensor

Measurement range: -7dB~60dB

Resolution: 1dB

Accuracy: ±1dB

Sensitivity: -65dB

Center frequency: 40.0±1.0KHz

Bandwidth: 2.0KHz


Battery

Built-in battery: Lithium battery, 8.4V, 1800mAh

Use time: About 6hours

Charging time: About 5hours

Protection: Over-voltage and over-current protection


Charger

Rated voltage: 8.4V

Output current: 1A

Temperature: 10℃-60℃

Humidity: <80%


Hardware

Shell: Monochrome molding plastic

Screen: 240*320 TFT LCD screen

Control: 6 buttons

Interface: Micro USB interface, charger port, headphone port, external port for collecting wave collector

Headphone: High fidelity noise canceling headphones


Dimension

Size: 178mm×75mm×30mm

Weight: 0.25KG

Case size: 415mm×330mm×170mm

Case weight: 2.3KG

Total weight: 2.7KG


Working environment

Use temperature: -20℃~50℃

Environmental humidity: 0-90%RH

IP class: 54


Packing list

Main unit: 1pc

TEV sensor(built-in): 1pc

Ultrasonic sensor(built-in): 1pc

Noise canceling headphone: 1pc

Probe: 1pc

Wave collector(Optional): 1pc

Charger: 1pc

Power cord: 1pc

User’s guide: 1pc

Factory test report: 1pc
