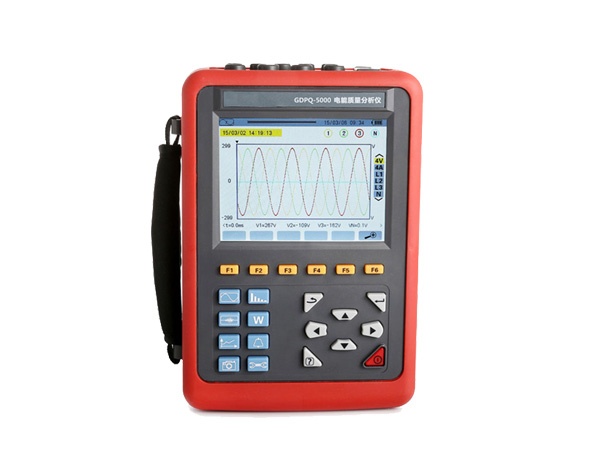

HV HIPOT GDPQ-5000 电能质量分析仪(1.0V~ 2000V)

Environment temperature:

- Base condition: (23±2)°C

- Working condition: -10°C~ 40°C

Relative humidity:

- Base condition: 40%~ 60%

- Working condition: <80%

Phase-to-neutral voltage:

- Base condition: (100±1%)V

- Working condition: 1.0V~ 1000V

Phase-to-phase voltage (True RMS phase-to-phase voltage):

- Base condition: (200±1%)V

- Working condition: 1.0V~ 2000V

Current (True RMS current):

- Base condition: (5±1%)A

- Working condition: 10mA~ 10A

Network frequency:

- Base condition: 50Hz±0.1Hz

- Working condition: 40Hz~ 70Hz

Phase shift

- Active power and active energy:

+ Base condition: Cosφ=1

+ Working condition: Cosφ: 0.2~ 1.0

- Reactive power and reactive energy:

+ Base condition: Sinφ=1

+ Working condition: Sinφ: 0.2~ 1.0

Harmonic:

- Base condition: <0.1%

- Working condition: 0.0%~ 100%

Voltage unbalance:

- Base condition: <10%

- Working condition: 0.0%~ 100%

Working voltage of device:

- Base condition: DC9.8V±0.1V

- Working condition: DC9.5V~ 10.5V

External electric field, magnetic field: Should be avoided

Test position: Tested wire at the center of clamp.
