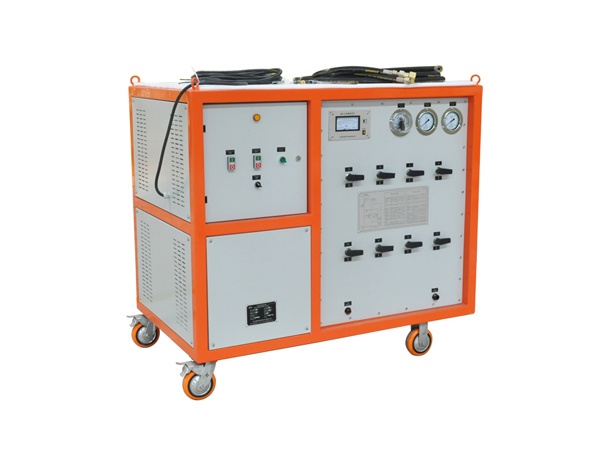

HV HIPOT GDQH-601 SF6 Gas Recycling Machine

Mode: Frozen liquefaction, air cooling, movable

Working environment temperature: -10℃~40℃

Recycle

- Initial pressure(Mpa): 0.8

- Terminal pressure(Mpa): ≤0.05

- 1m3 Volume necessary time(h/m3): ≤1

Air inflation

- Initial pressure(Pa): ≤133

- Terminal pressure(Mpa): 0.8

- 1m3 Volume necessary time(h/m3): ≤0.3

Time  for  vacuuming  from  0.1Mpa  to 133Pa (h/m3 ): ≤0.5

Limit vacuum (Pa): ≤10

Yearly leakage rate: ≤0.5%

SF6 gas purity after recycle

- Water(PPM/V): ≤60

- Oil (PPM/W): ≤3

- Dust (um): ≤1

Storage

- Storage mode:  liquid

- Pressure(MPa): 4.0

- Volume(L): 50

- Liquid storage quantity(kg): 50

Liquefaction mode: Frozen liquefaction

Vaporization mode: Electric heating

Dry filter regenerative way: Vacuum heating Activate regeneration

Power supply: Three phase five line; 3Φ 380V zero line available

Total power (kW): 11

Noise dB(A): ≤75

Dimension (mm): 1450mm*810mm*1200mm

Weight (kg): ≤500KG
