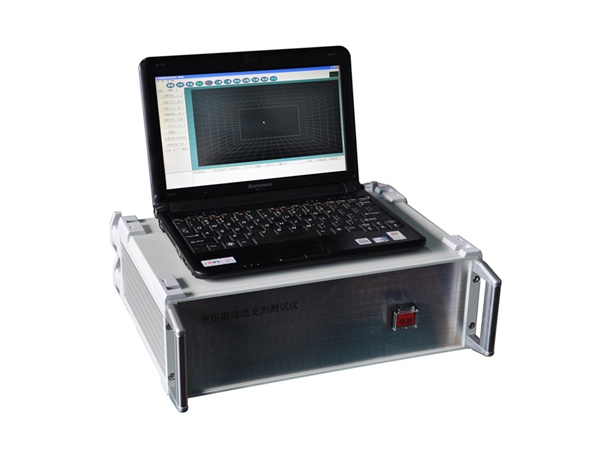

HV HIPOT GDRB-B 变压器线圈阻抗试验机 (10Hz-10MHz)

Scan mode:

1. Linear scanning distribution

Scanning measurement range: (10Hz) - (10MHz) 40000 scanning point, resolution 0.25kHz, 0.5kHz and 1kHz

2. Segment frequency scanning measurement distribution

Frequency scanning measurement range:

(0.5kHz) - (1MHz), 2000 scanning points ;

(0.5kHz) - (10kHz)

(10kHz) - (100kHz)

(100kHz) - (500kHz)

(500kHz) - (1000kHz)

 Other technical parameters:

1. Amplitude measurement range: (-120dB) to (+20 dB)

2. Amplitude measurement accuracy: 0.1dB

3. Scanning frequency accuracy: 0.005%

4. Signal input impedance: 1MΩ

5. Signal output impedance: 50Ω

6. Signal output amplitude: ± 20V

7. Test repetition percent: 99.9%

8. Measuring instruments dimensions (LxWxH) 350X300X140 (mm)

9. Instrument’s aluminum box size (LxWxH) 390X310X340 (mm)

10. Overall weight: 13Kg
