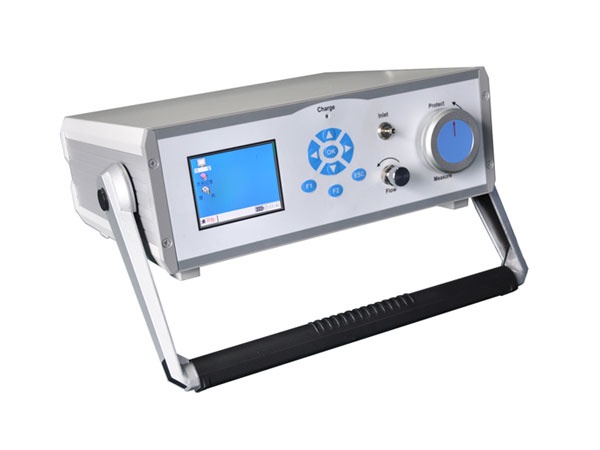

HV HIPOT GDSF-II 三合一六氟化硫气体分析仪

SF6 Humidity

Measuring range: dew point -100 ~ +30 ℃ (support ppmv, etc.)

Dew point accuracy: ± 0.5 ℃ (when the dew point temperature is below 0 ℃, the sensor output is the frost point)

Response time:

63% [90%]

+20→-20℃ Td 5s[45s]

-20→-60℃ Td 10s[240s]

Resolution: dew point 0.1℃ or 0.1ppm

Repeatability:  ± 0.5 ℃;

Gas flow: 0.8-0.9L/min.

Pressure measurement: 0-1.0Mpa

Probe protection: stainless steel sintering filter


SF6 Purity

Measuring range: 0 ~ 100% SF6.

Accuracy and repeatability: ± 0.5%, nothing to do with the flow.


SF6 decomposition products

H2S: 1 ~ 200ppm (standard).

SO2: 1 ~ 100ppm (standard).

Sensitivity: 0.5ppm.

Gas flow:  0.5±0.1L/min.

Power supply: 220VAC±10%, 60Hz, AC/DC use, with over-charge protection, working time no less than 5 hours

Storage temperature: -40--+70℃

Operation temperature: -30--+60℃

Pressure: 0-20bar

Dimension: 132*283*308mm

Weight: about 4.3kg
